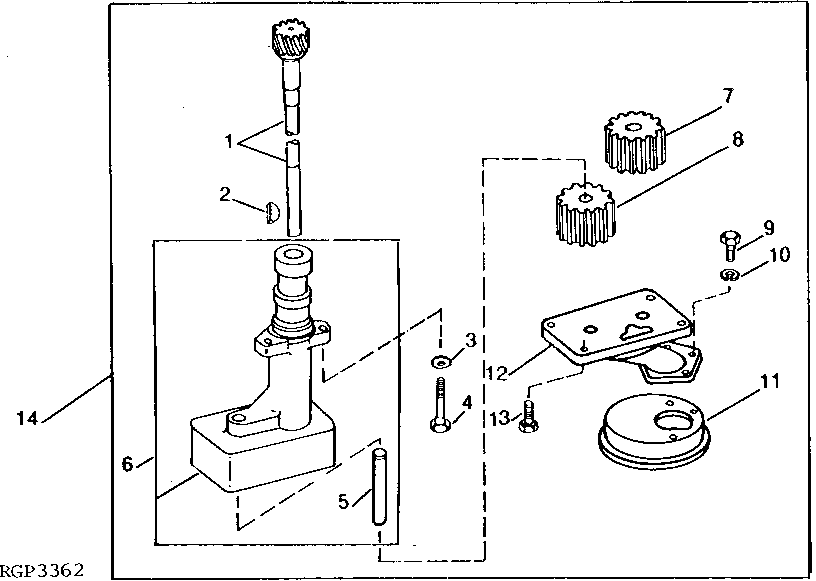

Запчасти John Deere 90A 1 - ENGINE OIL PUMP (CAMSHAFT DRIVEN) 407 - ENGINE 4

1

R64569

GEAR

1шт.

2

26H74

SHAFT KEY

3/16" X 5/8"

1шт.

3

M72490

WASHER

(SUB FOR R42729)

2шт.

4

R38614

CAP SCREW

(USE WITH R57497 OR R56606)

2шт.

R41920

CAP SCREW

(USE WITH R49172) (SUB FOR AR63865)

2шт.

5

R49173

DOWEL PIN

1шт.

6

AR69041

HOUSING

(MARKED R57497) (SUB FOR AR68312) (ALSO ORDER (2) R38614, (2) M72490 AND (2) R41920)

1шт.

7

R43434

GEAR

(SUB FOR AR70085)

1шт.

8

AR69042

GEAR

(SUB FOR AR70085)

1шт.

9

19H2127

CAP SCREW

5/16" X 7/8"

3шт.

10

12H303

LOCK WASHER

5/16"

3шт.

11

AR77711

OIL PUMP INTAKE

1шт.

12

SE500879

OIL PUMP

(REMANUFACTURED) (SUB FOR R63025)

1шт.

13

R46567

SCREW

4шт.

14

SE500879

OIL PUMP

(REMANUFACTURED) (SUB FOR AR80090) (ALSO ORDER M72490 AND R38614) (NOT INCLUDED)

1шт.
