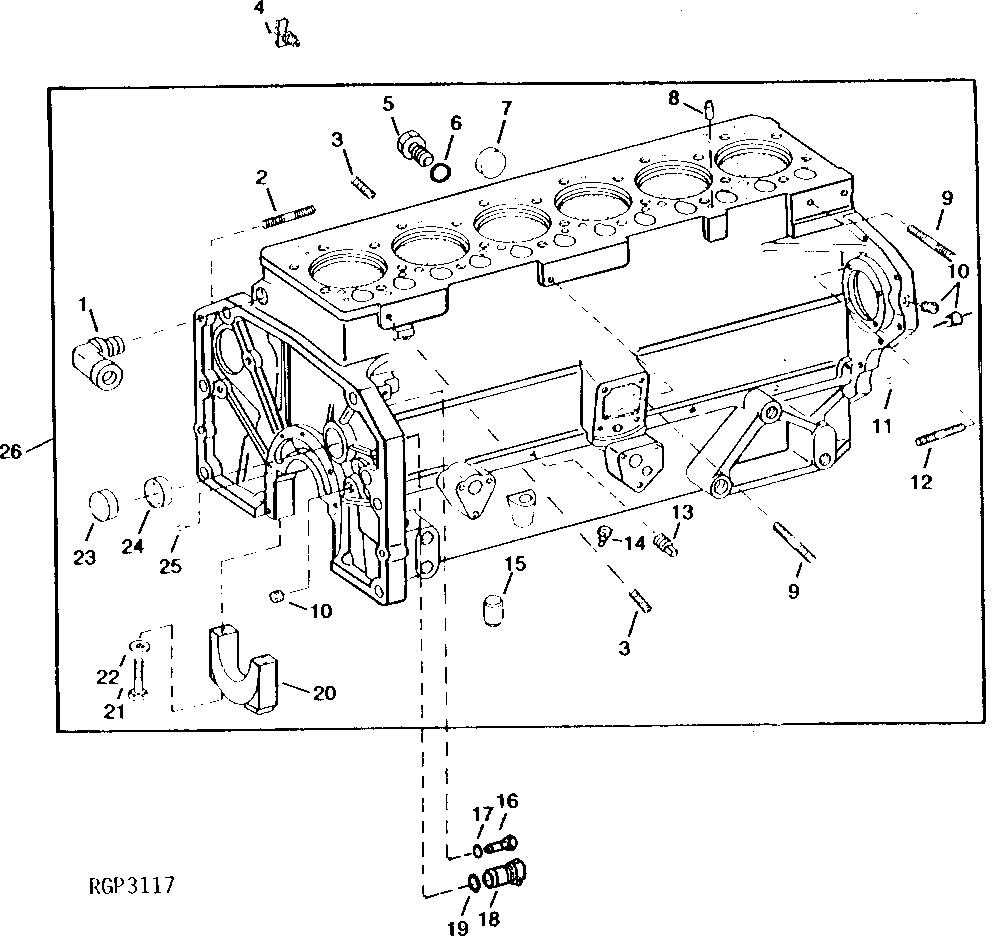

Запчасти John Deere 90 2 - CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS 404 - ENGINE 4

1

R58725

ELBOW FITTING

90°

1шт.

2

R114129

STUD

1/2" X 2", (SUB FOR D488R, APPL)

2шт.

3

15H666

PIPE PLUG

3/8", (USE (1) WHEN RE28854 HAS BEEN INSTALLED)

2шт.

4

AT13740

DRAIN VALVE

1шт.

15H220

ELBOW FITTING

(USE WITH AT13740)

1шт.

5

R39741

DRAIN PLUG

1шт.

6

U13639

O-RING

1шт.

7

AR80294

PLUG

1шт.

8

R26241

DOWEL PIN

7/16" X 1-3/4"

2шт.

9

K3083R

STUD

3шт.

10

RE57836

PIPE PLUG

1/2", (SUB FOR AR72318 OR 15H624)

3шт.

11

R1612R

DOWEL PIN

4шт.

12

R114130

STUD

(SUB FOR R55396, THIS APPLICATION)

4шт.

13

R104592

PIPE PLUG

(SUB FOR R21630, THIS APPLICATION)

3шт.

14

R43621

ORIFICE

6шт.

15

R500642

BUSHING

(SUB FOR R62930, THIS APPLICATION)

2шт.

16

AR61589

PLUG

1шт.

17

A4365R

O-RING

1шт.

18

AR61533

PLUG

1шт.

19

R27149

O-RING

1шт.

20

R59112

CAP

(MAIN)

6шт.

R59113

CAP

(MAIN THRUST)

1шт.

21

R60117

SCREW

14шт.

22

R70268

WASHER

(SUB FOR R42363)

14шт.

23

R26115

PLUG

1шт.

24

R46903

BUSHING

4шт.

25

F1743R

DOWEL PIN

2шт.

26

AR92534

CYLINDER BLOCK

(A) (MARKED R63199) (SUB SE500076, THIS APPLICATION)

1шт.

AR101272

CYLINDER BLOCK

(A) (MARKED R74123) (SUB SE500076, THIS APPLICATION)

1шт.

AR101272

CYLINDER BLOCK

(A) (MARKED R74123) (SUB SE500076, THIS APPLICATION)

1шт.

RE13842

CYLINDER BLOCK

(A) (MARKED R75934) (SUB SE500076, THIS APPLICATION)

1шт.

RE28854

CYLINDER BLOCK

(A) (MARKED R88217) (SUB SE500076, THIS APPLICATION)

1шт.

RE37369

CYLINDER BLOCK

(A) (MARKED R98554) (SUB SE500076, THIS APPLICATION)

1шт.
