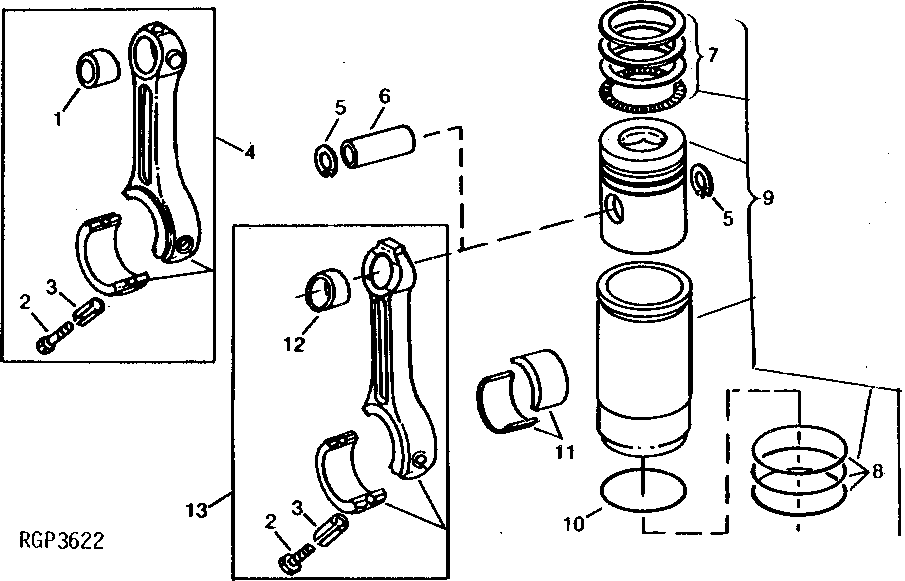

Запчасти John Deere 90 2 - PISTON, RINGS, LINERS, AND CONNECTING RODS 403 - ENGINE 4

1

R60197

BUSHING

(USE WITH R66925 OR R57484)

6шт.

2

R66453

CAP SCREW

(SUB FOR R48316)

12шт.

3

R48317

SLEEVE

12шт.

4

SE500499

CONNECTING ROD REMAN

(SUB FOR AR86985 OR AR79366) (REMANUFACTURED)

6шт.

5

N51168

SNAP RING

12шт.

6

R64451

PISTON PIN

6шт.

7

AR82355

PISTON RING KIT

6шт.

8

AR72351

O-RING KIT

6шт.

9

AR84089

PISTON-LINER KIT

(MARKED AR69038) (SUB FOR AR77558) (USE WITH BLOCK MARKED R57424 OR R65628)

6шт.

RE20291

PISTON-LINER KIT

(A) (MARKED AR85997 OR RE20275) (SUB FOR AR89630)

6шт.

RE20288

PISTON-LINER KIT

(B) (MARKED AR85997 OR RE20275) (SUB FOR RE13847) (SUB RE40476)

6шт.

RE40476

PISTON-LINER KIT

(B) (MARKED RE40433 OR RE42231)

6шт.

10

R81276

SHIM

0.05 MM

ARшт.

R81277

SHIM

0.10 MM

ARшт.

11

AR101413

BEARING

STD (PKG (2) R75148) (SUB AR101271)

ARшт.

AR101271

BEARING

STD (PKG (2) R74671) (SUB FOR AR101271)

ARшт.

AR104129

BEARING

0.05 MM (.002") US, (PKG (2) R60198, (2) R75166 0R (2) R76649) (SUB FOR AR73026)

ARшт.

AR104130

BEARING

0.25 MM (.010") US, (PKG (2) R60199, (2) R75167 OR (2) R76650) (SUB FOR AR73027)

ARшт.

AR104131

BEARING

0.50 MM (.020") US, (PKG (2) R60200, (2) R75158 OR (2) R76651) (SUB FOR AR73028)

ARшт.

AR104132

BEARING

0.75 MM (.030") US, (PKG (2) R60201, (2) R75165 OR (2) R76652) (SUB FOR AR73029)

ARшт.

12

R69045

BUSHING

(USE WITH R63959)

6шт.

13

SE500499

CONNECTING ROD REMAN

(SUB FOR AR79366) (REMANUFACTURED)

6шт.
