Запчасти John Deere 90 1 - CAMSHAFT AND GEAR 402 - ENGINE 4

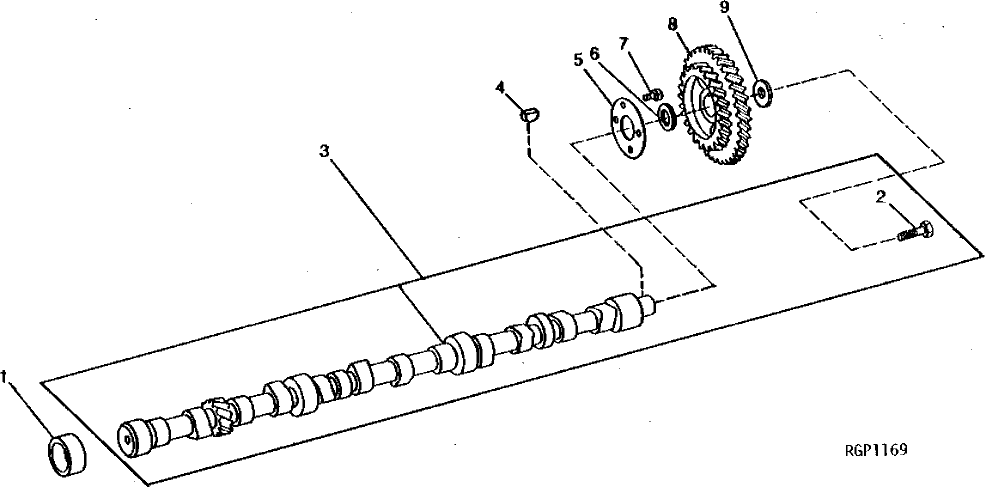

Схема запчастей John Deere 90 - 1 - CAMSHAFT AND GEAR 402 - ENGINE 4

Артикул

Название

Примечание

Количество

1

R46903

BUSHING

4шт.

2

R83569

CAP SCREW

12.700 X 114.300 MM (1/2" X 4-1/2") (GR. G) (USE WITH R77447 OR R77448)

1шт.

19H1805

CAP SCREW

1/2" X 2-1/4", (USE WITH R63406 OR R54843)

1шт.

3

RE11137

KIT

(MARKED R77447, R63406 OR R77448)

1шт.

4

26H13

SHAFT KEY

5/32" X 3/4"

1шт.

5

R40634

THRUST WASHER

(SUB R111387, R111388 (FIP GEAR), (3) R63845, R42355, R99616 AND (3) 19H3483, APPL)

1шт.

R42355

THRUST WASHER

1шт.

6

R35127

WASHER

(SUB R111387, R111388 (FIP GEAR), (3) R63845, R42355, R99616 AND (3) 19H3483, APPL)

1шт.

R99616

WASHER

1шт.

7

19H1813

CAP SCREW

5/16" X 5/8"

4шт.

8

R67576

GEAR

(SUB FOR R49194) (SUB R111387, R111388 (FIP GEAR), (3) R63845, R42355, R99616 AND (3) 19H3483, APPL)

1шт.

R99597

GEAR

(73 TOOTH SM CAM GEAR) (SUB R111387, R111388 (FIP GEAR), (3) R63845 AND (3) 19H3483)

1шт.

R111387

GEAR

(42 TOOTH SM CAM GEAR) (USE WITH R111388, (3) R63845 AND (3) 19H3483)

1шт.

9

R35256

WASHER

1шт.

Выбрано товаров: 14
