20 - SWING AND TRACK VALVE TO ROTARY MANIFOLD HYDRAULICS

Запчасти John Deere 90 20 - SWING AND TRACK VALVE TO ROTARY MANIFOLD HYDRAULICS 260 - AXLES AND SUSPENSION SYSTEMS 2

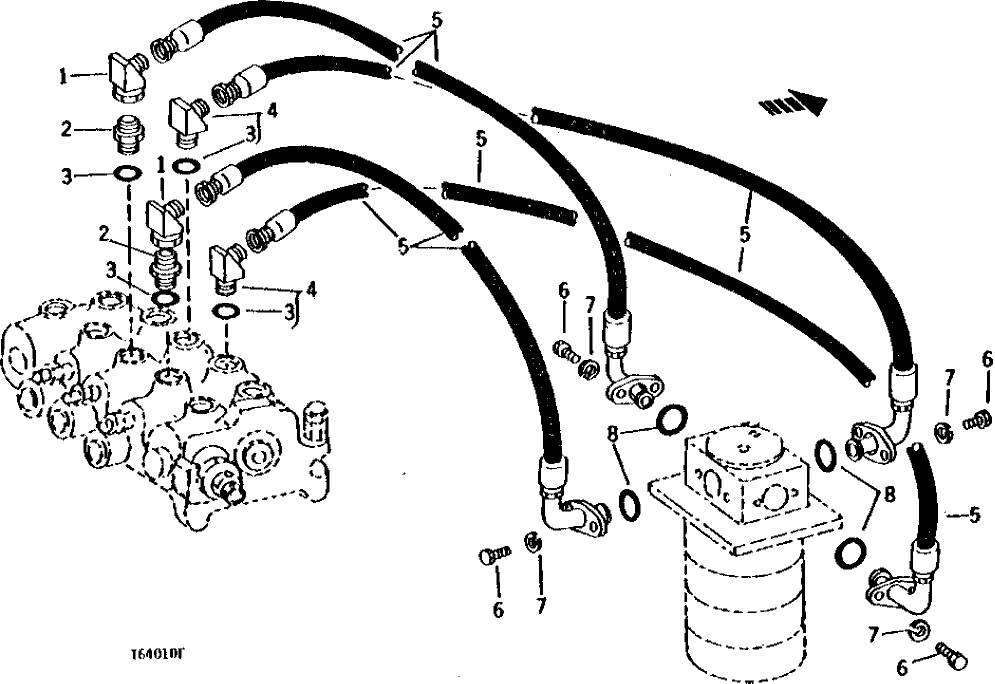

Схема запчастей John Deere 90 - 20 - SWING AND TRACK VALVE TO ROTARY MANIFOLD HYDRAULICS 260 - AXLES AND SUSPENSION SYSTEMS 2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

X16V6X-S

ELBOW FITTING

(SUB FOR AT50992)

2шт.

2

T26767

FITTING

1шт.

3

R29936

O-RING

4шт.

4

AU43288

ELBOW FITTING

2шт.

5

AT46301

HYDRAULIC HOSE

4шт.

6

19H2509

CAP SCREW

1/2" X 1-1/2"

8шт.

7

12H301

LOCK WASHER

1/2"

8шт.

8

T78313

O-RING

(SUB FOR H61355)

4шт.
