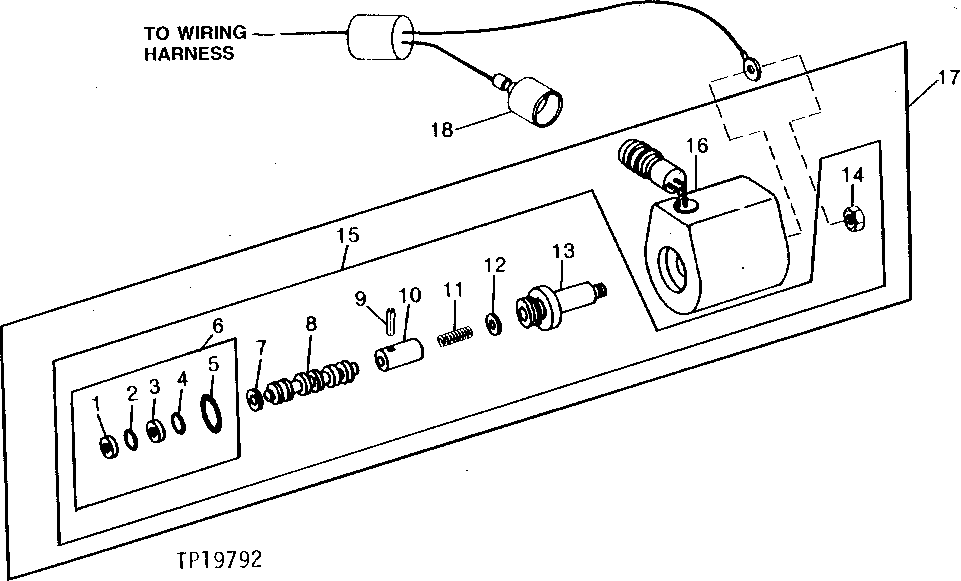

Запчасти John Deere 90 16A - REPLACEMENT SOLENOID VALVE WITH HARNESS ADAPTER 260 - AXLES AND SUSPENSION SYSTEMS 2

1

R42926

BACK-UP RING

1шт.

2

T40308

O-RING

(SUB FOR H81608 AND R45186, THIS APPLICATION)

1шт.

3

R45187

BACK-UP RING

1шт.

4

R45638

O-RING

1шт.

5

U12547

O-RING

1шт.

6

AT66730

KIT

1шт.

7

RING

(SUB RE21872 FOR R46701, THIS APPLICATION)

1шт.

8

SPOOL VALVE

(SUB RE21872 FOR AR81176 , THIS APPLICATION)

1шт.

9

SPRING PIN

(SUB RE21872 FOR 34H227, THIS APPLICATION)

1шт.

10

PLUNGER

(SUB RE21872 FOR R58884 , THIS APPLICATION)

1шт.

11

SPRING

(SUB RE21872 FOR R64698, THIS APPLICATION)

1шт.

12

SHIM

(SUB RE21872 FOR R64697, THIS APPLICATION)

1шт.

13

GUIDE

(SUB RE21872 FOR AR48903, THIS APPLICATION)

1шт.

14

M63707

LOCK NUT

1шт.

15

VALVE

(FURNISH RE21872)

1шт.

16

ELECTRICAL COIL

24V (SUB RE22400 AND AT66692 FOR AT67970 AND AT66692, THIS APPLICATION)

1шт.

17

SOLENOID VALVE

(SUB RE22399 AND AT66692 FOR AT66691 AND AT66692, THIS APPLICATION)

1шт.

18

AT66692

WIRING HARNESS

SOLENOID ADAPTER

1шт.
