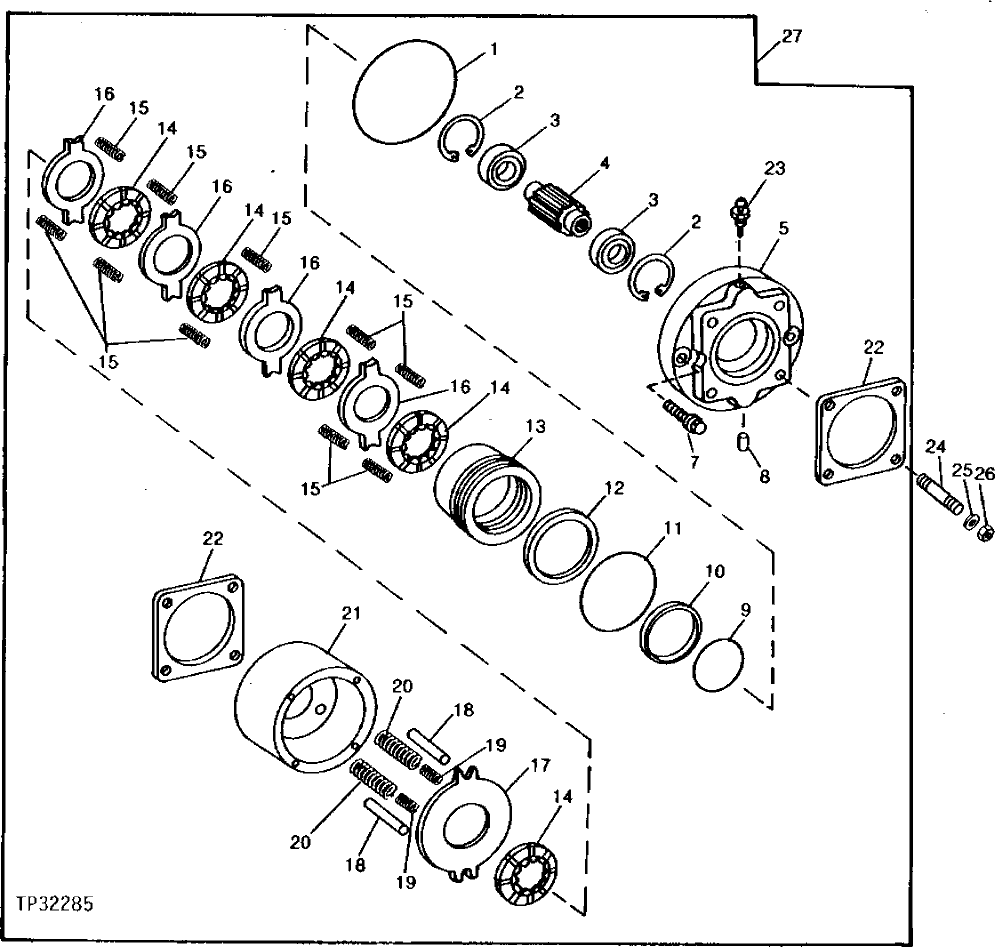

Запчасти John Deere 90 8 - PROPEL BRAKE 260 - AXLES AND SUSPENSION SYSTEMS 2

1

T70905

WASHER

1шт.

2

T70922

SNAP RING

2шт.

3

JD8532

BALL BEARING

(SUB FOR AT67874)

2шт.

4

T70923

SHAFT

1шт.

5

T75057

PLATE

(SUB FOR T70912)

1шт.

6

T70911

SCREW

1шт.

7

19H3493

SCREW

1/2" X 2-1/4", (SUB FOR T70906)

2шт.

8

T67479

CAP

1шт.

9

R76030

O-RING

(SUB FOR T70907)

1шт.

10

T70908

WASHER

1шт.

11

T38485

O-RING

1шт.

12

T70910

WASHER

1шт.

13

T70909

PISTON

1шт.

14

T70915

DISK

5шт.

15

T70913

SPRING

10шт.

16

T70914

DISK

STATIONARY

4шт.

17

T70916

DISK

PRIMARY

1шт.

18

T70917

PIN FASTENER

2шт.

19

T70920

COMPRESSION SPRING

12шт.

20

T70921

SPRING

12шт.

21

T70918

HOUSING

1шт.

22

T70919

GASKET

2шт.

23

E14814

PRESSURE RELIEF FITTING

1шт.

24

T72092

STUD

4шт.

25

N31767

WASHER

4шт.

26

14H1040

NUT

1/2"

4шт.

27

BRAKE

(SUB FOR AT67873) ( AT72619 NO LONGER AVAILABLE)

1шт.
