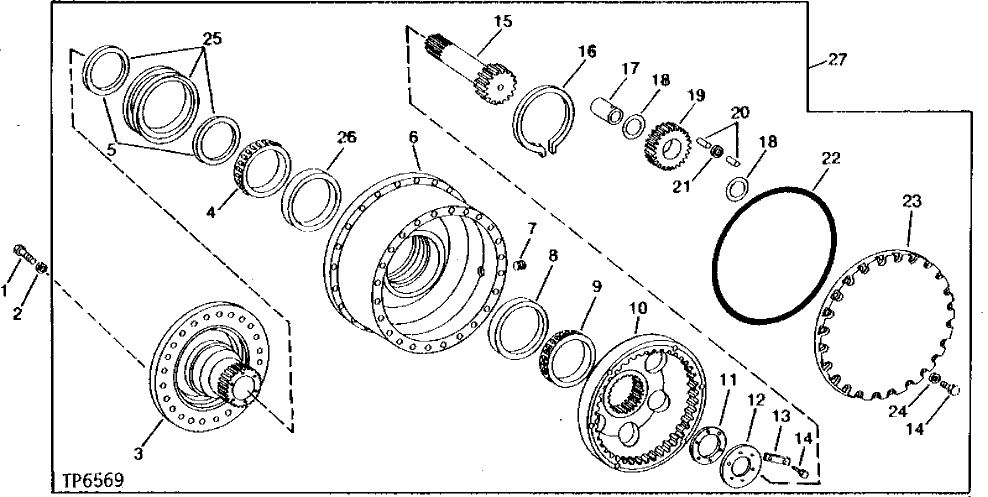

Запчасти John Deere 90 4 - PLANETARY DRIVE 250 - AXLES AND SUSPENSION SYSTEMS 2

1

19H2826

CAP SCREW

3/4" X 4-1/2"

22шт.

19H2725

CAP SCREW

3/4" X 3-3/4"

2шт.

2

T10510

WASHER

(USE IF AVAILABLE)

24шт.

R78019

WASHER

(SUB FOR T10510)

24шт.

3

T47272

HOUSING

1шт.

4

JD9093

BEARING CONE

1шт.

5

AT52781

KIT

(CONTAINS (2) RUBBER RINGS) (CHICAGO RAWHIDE) (SUB AT61855)

1шт.

AT61856

SEAL

(CONTAINS (2) RUBBER RINGS) (CHICAGO RAWHIDE)

1шт.

6

HUB

( T47273 USE IF AVAILABLE)

1шт.

7

U17027

FITTING

1шт.

8

JD9149

BEARING CUP

1шт.

9

JD9094

BEARING CONE

1шт.

10

AT45932

PLANET PINION CARRIER

(INCLUDES R76484 AND (6) R53578)

1шт.

R76484

GEAR

(RING GEAR) (PART OF AT45932)

1шт.

R53578

QUICK LOCK PIN

(DOWEL PIN) (PART OF AT45932)

6шт.

11

T47274

SHIM

0.51 MM (.020")

ARшт.

T47275

SHIM

0.18 MM (.007")

ARшт.

T47276

SHIM

0.13 MM (.005")

ARшт.

12

T47277

RETAINER

1шт.

13

T47279

STRAP

3шт.

14

19H2706

CAP SCREW

5/8" X 2", HS, SAE 8

29шт.

15

T47282

SUN GEAR

(17 TEETH)

1шт.

16

R57055

SNAP RING

1шт.

17

R63114

SHAFT

3шт.

18

R46973

THRUST WASHER

6шт.

19

R51965

PINION

3шт.

20

R55081

NEEDLE ROLLER

150шт.

21

R55082

WASHER

3шт.

22

T47281

O-RING

1шт.

23

T47280

PLANET PINION CARRIER

1шт.

24

24H1375

WASHER

11/16" X 1-1/8" X 0.060"

23шт.

25

AT45933

SEAL

FINAL DRIVE LOUVER AND SPROCKET FRAME (SEAL CONTAINS AT52781 RING SEAL) (SUB AT61855)

1шт.

AT61855

SEAL

(SEAL KIT) (SEAL CONTAINS AT61856 RING SEAL)

1шт.

26

JD9148

BEARING CUP

1шт.

27

AT72545

DRIVE

(ALSO ORDER T74978)

1шт.
