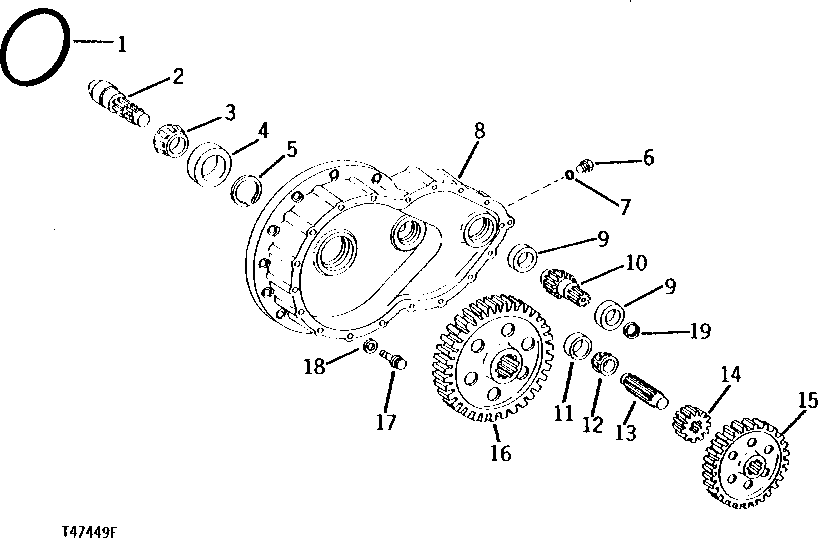

Запчасти John Deere 90 3 - TRACK DRIVE GEAR CASE AND GEARS 250 - AXLES AND SUSPENSION SYSTEMS 2

1

U42029

O-RING

1шт.

2

T39439

SHAFT

1шт.

3

JD9075

BEARING CONE

1шт.

4

JD9132

BEARING CUP

1шт.

5

F3669R

SNAP RING

1шт.

6

R27094

DRAIN PLUG

1шт.

7

R26286

O-RING

1шт.

8

T39401

GEAR CASE

(USE IF AVAILABLE)

1шт.

9

JD7682

BALL BEARING

2шт.

10

T47029

GEAR

(12 TEETH)

1шт.

11

JD8223

BEARING CUP

1шт.

12

JD9027

BEARING CONE

1шт.

13

T39405

SHAFT

INTERMEDIATE

1шт.

14

T24862

PINION

FINAL DRIVE

1шт.

15

T40533

GEAR

INTERMEDIATE (13 TEETH)

1шт.

16

T29461

GEAR

FINAL DRIVE (56 TEETH)

1шт.

17

T40256

SCREW

9шт.

18

C12180

WASHER

(SUB FOR M930T, THIS APPLICATION)

9шт.

19

AT40603

SEAL

1шт.
