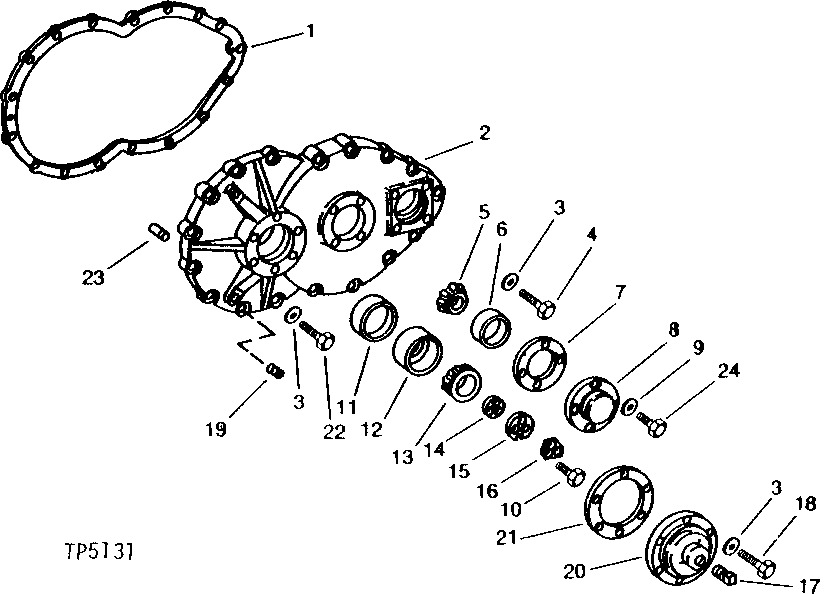

Запчасти John Deere 90 2 - TRACK DRIVE GEAR CASE COVER 250 - AXLES AND SUSPENSION SYSTEMS 2

1

T39403

GASKET

1шт.

2

T58004

COVER

(SUB FOR T39402) (ALSO ORDER (2) 15H562) (SUB T72157)

1шт.

T72157

COVER

1шт.

3

24H1227

WASHER

17/32" X 13/16" X 0.060"

23шт.

4

19H2735

CAP SCREW

1/2" X 2"

8шт.

5

JD9027

BEARING CONE

1шт.

6

JD8223

BEARING CUP

1шт.

7

SHIM

(A) 0.19 MM (.0075") ( T39409 NOT AVAILABLE)

ARшт.

SHIM

(A) 0.13 MM (.005") ( T39410 NOT AVAILABLE)

ARшт.

SHIM

(A) 0.51 MM (.020") ( T39411 NOT AVAILABLE)

ARшт.

8

T39408

BEARING HOUSING W/O BEARING

1шт.

9

24H1301

WASHER

13/32" X 9/16" X 0.065"

4шт.

10

19H3617

CAP SCREW

HS, SAE 8, 7/16" X 1-1/8"

3шт.

11

T41644

BUSHING

1шт.

12

JD8255

BEARING CUP

1шт.

13

JD8941

BEARING CONE

1шт.

14

SHIM

(B) 0.51 MM (.020") ( T39416 NOT AVAILABLE)

ARшт.

SHIM

(B) 0.19 MM (.0075") ( T39417 NOT AVAILABLE)

ARшт.

SHIM

(B) 0.13 MM (.005") ( T39418 NOT AVAILABLE)

ARшт.

15

T39415

WASHER

1шт.

16

PLATE

( T39425 NO LONGER AVAILABLE) (SUB (3) T19583)

1шт.

T19583

WASHER

(NOT ILLUSTRATED)

3шт.

17

15H665

PIPE PLUG

3/4"

1шт.

18

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1-1/4"

6шт.

19

T42914

FITTING

1" MAGNETIC

2шт.

15H562

PIPE PLUG

1", (USE WITH T58004 AND T67718)

2шт.

15H562

PIPE PLUG

1", 1" (USE WITH T72157

2шт.

20

T39420

BEARING HOUSING W/O BEARING

1шт.

21

T39421

GASKET

1шт.

22

19H1781

CAP SCREW

1/2" X 3-1/2", (USE WITH T58004 AND T67718)

9шт.

19H2965

CAP SCREW

1/2" X 3-1/2", (USE WITH T72157)

7шт.

19H3550

CAP SCREW

HS, SAE 8, 1/2" X 4" (USE WITH T72157)

2шт.

23

R26198

DOWEL PIN

2шт.

24

19H3483

CAP SCREW

3/8" X 1-1/8"

4шт.
