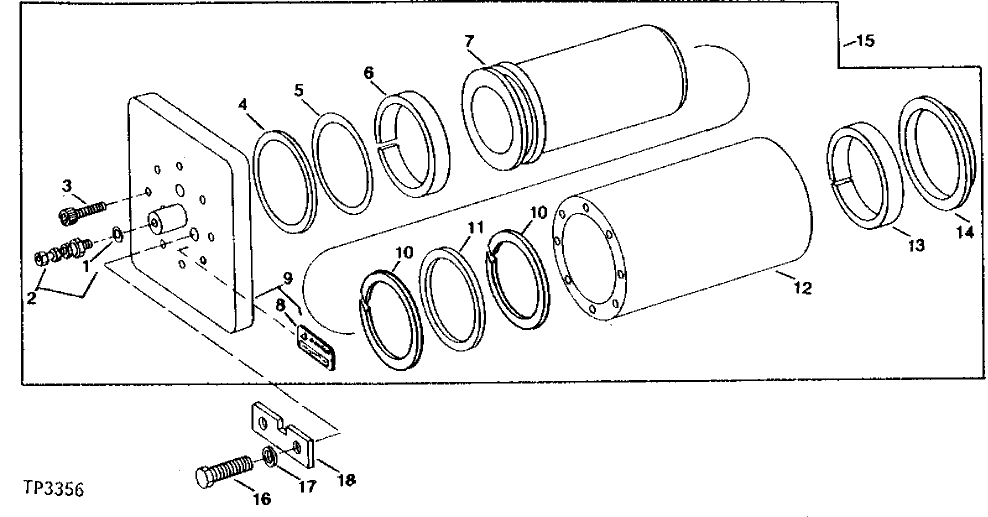

Запчасти John Deere 90 4 - TRACK ACCUMULATOR 130 - TRACKS 1

1

R33259

O-RING

1шт.

2

AT46202

HYD ACTUATED CONTROL VALVE

1шт.

3

19H3278

SCREW

7/16" X 1.380"

8шт.

4

T46621

BACK-UP RING

1шт.

5

T46620

O-RING

1шт.

6

T67885

RING

(SUB FOR T47541)

1шт.

7

PISTON

( T47535 NO LONGER AVAILABLE)

1шт.

8

T64425

SAFETY SIGN

(SUB FOR T64303)

1шт.

9

BASE

( T47537 NO LONGER AVAILABLE)

1шт.

BASE

( AT61230 NO LONGER AVAILABLE)

1шт.

10

T72204

BACK-UP RING

2шт.

11

T72203

SEAL

(SUB FOR T64018)

1шт.

12

CYLINDER

( T47536 NO LONGER AVAILABLE)

1шт.

13

T67884

RING

(SUB FOR T47539)

1шт.

14

T47538

SEAL

1шт.

15

AT69311

ACCUMULATOR

(SUB FOR AT46201)

1шт.

16

19H1405

CAP SCREW

3/4" X 2-1/2"

3шт.

17

24H1161

WASHER

13/16" X 1-15/32" X 0.134"

3шт.

18

T58996

PLATE

1шт.
