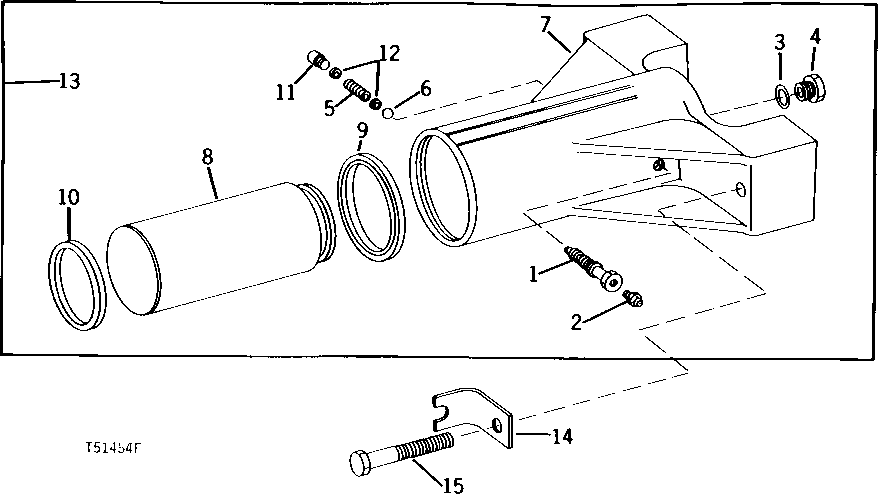

Запчасти John Deere 90 3 - TRACK ADJUSTER 130 - TRACKS 1

1

AT46412

BALL COCK VALVE

1шт.

2

JD7759

LUBRICATION FITTING

(SUB FOR JD7797, THIS APPLICATION)

1шт.

3

R29936

O-RING

1шт.

4

R36636

FITTING PLUG

1шт.

5

T18540

SPRING

1шт.

6

T23426

BALL

1шт.

7

T47530

CYLINDER

1шт.

8

T47531

PISTON

1шт.

9

T47532

SEAL

1шт.

10

T47533

SEAL

1шт.

11

22H1054

SET SCREW

5/8" X 1/2"

1шт.

12

24H1286

WASHER

9/32" X 1/2" X 1/16"

2шт.

13

ADJUSTER

( AT46199 USE IF AVAILABLE)

1шт.

14

ANGLE

( T55800 USE IF AVAILABLE)

1шт.

15

19H3105

CAP SCREW

3/4" X 5"

2шт.
