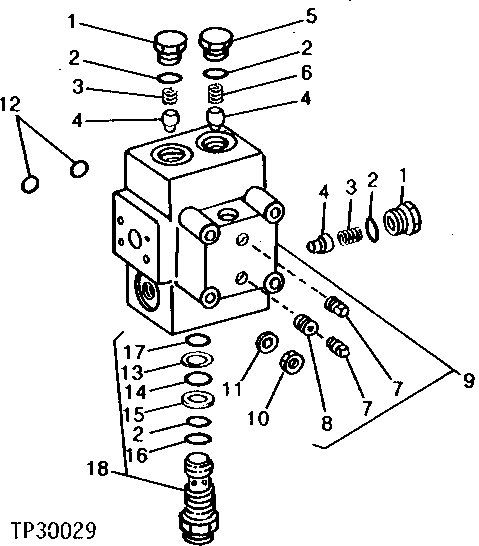

Запчасти John Deere 90 2 - CROSSOVER RELIEF VALVE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

T42732

RETAINER

CHECK POPPET

2шт.

2

R1138R

O-RING

34.519 X 3.531 MM (1-23/64" X 0.139") (SUB FOR N131820, THIS APPLICATION)

5шт.

3

T42731

SPRING

2шт.

4

T42733

POPPET

4шт.

5

T57931

PIPE PLUG

2шт.

6

T57932

SPRING

2шт.

7

15H275

PIPE PLUG

1/4"

2шт.

8

T29437

ORIFICE

1шт.

9

AT55975

RELIEF VALVE

CROSSOVER

1шт.

10

14H1039

NUT

5/8"

4шт.

11

24H1363

WASHER

41/64" X 1-1/16" X 0.105"

4шт.

12

N131838

O-RING

2шт.

13

T45432

BACK-UP RING

1шт.

14

T59052

O-RING

1шт.

15

T27963

BACK-UP RING

1шт.

16

R495R

O-RING

1шт.

17

U11061

O-RING

1шт.

18

AT55786

PRESSURE RELIEF VALVE

1шт.
