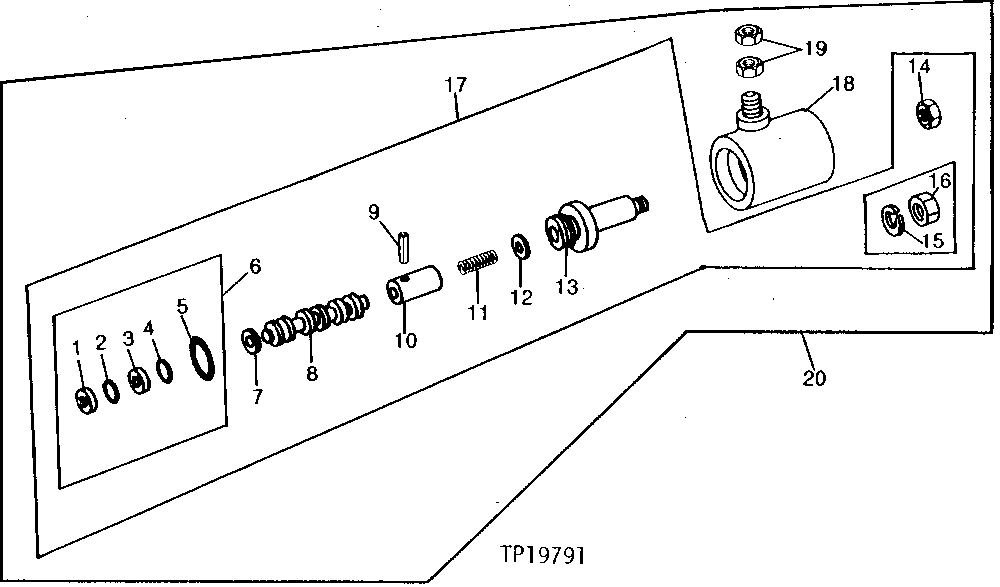

Запчасти John Deere 90 1 - SOLENOID VALVE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

R42926

BACK-UP RING

1шт.

2

T40308

O-RING

(SUB FOR H81608 AND R45186, THIS APPLICATION)

1шт.

3

R45187

BACK-UP RING

1шт.

4

R45638

O-RING

1шт.

5

U12547

O-RING

1шт.

6

AT66730

KIT

1шт.

7

RING

(SUB RE21872 FOR R46701, THIS APPLICATION)

1шт.

8

SPOOL VALVE

(SUB RE21872 FOR AR81176 , THIS APPLICATION)

1шт.

9

SPRING PIN

(SUB RE21872 FOR 34H227, THIS APPLICATION)

1шт.

10

PLUNGER

(SUB RE21872 FOR R58884 , THIS APPLICATION)

1шт.

11

SPRING

(SUB RE21872 FOR R64698, THIS APPLICATION)

1шт.

12

SHIM

(SUB RE21872 FOR R64697, THIS APPLICATION)

1шт.

13

GUIDE

(SUB RE21872 FOR AR48903, THIS APPLICATION)

1шт.

14

M63707

LOCK NUT

1шт.

15

12H297

LOCK WASHER

1/4", (SUB M63707, THIS APPLICATION)

1шт.

16

14H786

NUT

1/4", (SUB M63707, THIS APPLICATION)

1шт.

17

VALVE

(FURNISH RE21872)

1шт.

18

ELECTRICAL COIL

24V (SUB RE22400 AND AT66692 FOR AT59569 WHEN USED WITH AT59568 AND AT53023 WHEN USED WITH AT46893, THIS APPLICATION)

1шт.

19

14H605

NUT

0.164", NO. 8

2шт.

20

SOLENOID VALVE

(SUB RE22399 ALONG WITH AT66692 FOR AT59568 AND AT46893, THIS APPLICATION)

1шт.
