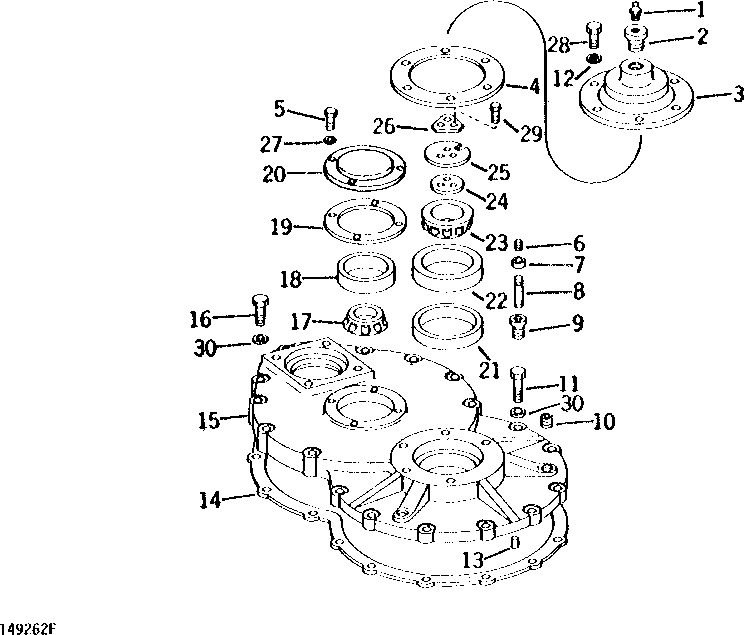

Запчасти John Deere 90 2 - SWING GEARBOX COVER 4350 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

JD7763

LUBRICATION FITTING

1/8", GREASE, STRAIGHT

1шт.

2

15H518

PIPE BUSHING

3/4" X 1/8"

1шт.

3

T39420

BEARING HOUSING W/O BEARING

1шт.

4

T39421

GASKET

1шт.

5

19H3483

CAP SCREW

3/8" X 1-1/8"

4шт.

6

U14273

BREATHER

1шт.

7

T41645

FITTING

1шт.

8

29H316

THREADED NIPPLE

1" X 3-1/2"

1шт.

9

15H616

PIPE BUSHING

3/4" X 1"

1шт.

10

15H562

PIPE PLUG

1", (USE WITH T58004 AND T67718

2шт.

15H562

PIPE PLUG

1", (USE WITH T72157)

3шт.

11

19H1781

CAP SCREW

1/2" X 3-1/2", (USE WITH T58004 AND T67718)

9шт.

19H2965

CAP SCREW

1/2" X 3-1/2", (USE WITH T72157)

7шт.

19H3550

CAP SCREW

HS, SAE 8, 1/2" X 4" (USE WITH T72157)

2шт.

12

24H1227

WASHER

17/32" X 13/16" X 0.060"

6шт.

13

R26198

DOWEL PIN

2шт.

14

T39403

GASKET

1шт.

15

T58004

COVER

(ALSO ORDER (2) 15H562) (SUB T72157)

1шт.

T72157

COVER

1шт.

16

19H2735

CAP SCREW

1/2" X 2"

8шт.

17

JD9027

BEARING CONE

1шт.

18

JD8223

BEARING CUP

1шт.

19

SHIM

(A) 0.19 MM (.0075") ( T39409 NOT AVAILABLE)

3шт.

SHIM

(A) 0.13 MM (.005") ( T39410 NOT AVAILABLE)

3шт.

SHIM

(A) 0.51 MM (.020") ( T39411 NOT AVAILABLE)

1шт.

20

T39408

BEARING HOUSING W/O BEARING

1шт.

21

T40693

SPACER

1шт.

22

JD8255

BEARING CUP

1шт.

23

JD8941

BEARING CONE

1шт.

24

SHIM

(B) 0.51 MM (.020") ( T39416 NOT AVAILABLE)

2шт.

SHIM

(B) 0.19 MM (.0075") ( T39417 NOT AVAILABLE)

2шт.

SHIM

(B) 0.13 MM (.005") ( T39418 NOT AVAILABLE)

2шт.

25

T39415

WASHER

1шт.

26

PLATE

(SUB (3) T39425) ( T39425 NOT AVAILABLE)

1шт.

T19583

WASHER

(NOT ILLUSTRATED)

3шт.

27

24H1301

WASHER

13/32" X 9/16" X 0.065"

4шт.

28

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1-1/4"

6шт.

29

19H3617

CAP SCREW

HS, SAE 8, 7/16" X 1-1/8"

3шт.

30

24H1181

WASHER

13/16" X 1-1/8" X 0.060"

17шт.
