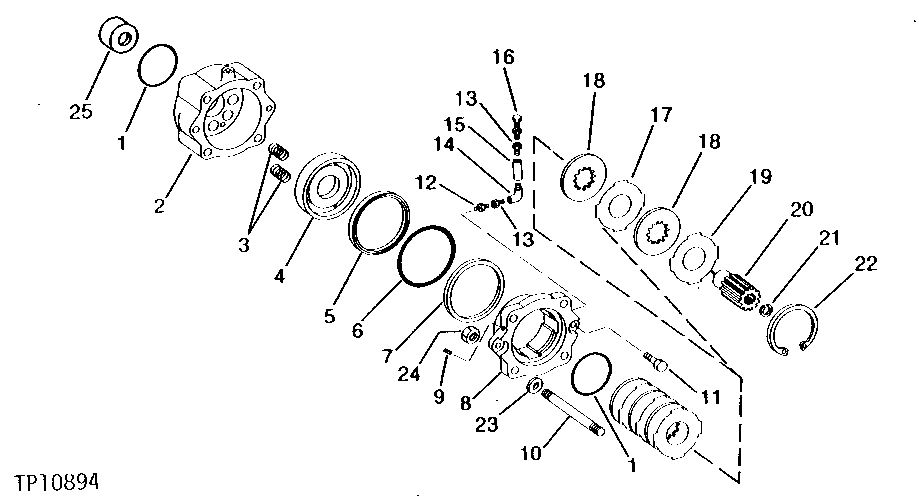

Запчасти John Deere 90 1 - HOUSE LOCK 4311 - SWING, ROTATION OR PIVOTING SYSTEM 43

1

R55453

O-RING

(SUB FOR L2143CU, THIS APPLICATION) (SUB FOR T70178)

2шт.

2

T57510

HOUSING

(SUB AT60809)

1шт.

AT60809

HOUSING

(MARKED T63825)

1шт.

3

T40977

SPRING

10шт.

4

T40975

PISTON

1шт.

5

AT67011

SEAL

(SUB FOR AT39719) (SUB AT79896)

1шт.

AT79896

SEAL

1шт.

6

T70176

O-RING

(SUB FOR R35153, THIS APPLICATION)

1шт.

7

U44590

BACK-UP RING

1шт.

8

T57511

FLANGE

1шт.

9

15H638

PIPE PLUG

1/8"

1шт.

10

F138R

STUD

(SUB T67716, THIS APPLICATION)

4шт.

T67716

STUD

4шт.

11

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

12

T28053

THREADED NIPPLE

(HOUSE LOCK)

1шт.

13

15H514

PIPE BUSHING

(1/2" X 1/8") (HOUSE LOCK)

2шт.

14

15H200

ELBOW FITTING

(1/2") (HOUSE LOCK)

1шт.

15

T59036

COUPLING

(HOUSE LOCK)

1шт.

16

U14273

BREATHER

1шт.

17

T59495

BRAKE DISK

7шт.

18

T114856

BRAKE DISK

(SUB FOR T46153)

7шт.

19

T59496

BRAKE DISK

1шт.

20

T40976

SHAFT

1шт.

21

T14445

SNAP RING

1шт.

22

T40980

SNAP RING

1шт.

23

24H1341

WASHER

17/32" X 15/16" X 0.060", (USE WITH F138R)

4шт.

N31767

WASHER

(USE WITH T67716)

4шт.

24

14H1040

NUT

1/2"

4шт.

25

AT40603

SEAL

1шт.
