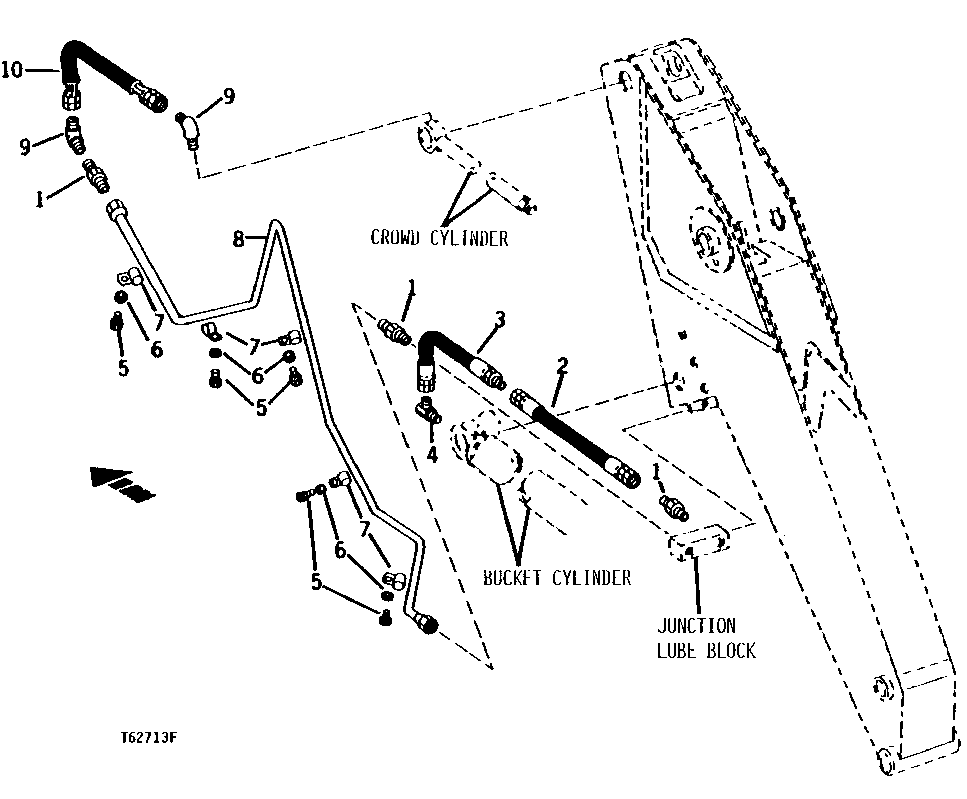

Запчасти John Deere 90 45 - BUCKET AND CROWD CYLINDER LUBE LINES 3360 - BACKHOE AND EXCAVATOR 33

1

R27346

FITTING

3шт.

2

AT45498

HYDRAULIC HOSE - FABRICATE

279 MM LONG (1/2" X 11")

1шт.

3

AR47295

HYDRAULIC HOSE - FABRICATE

279 MM LONG (1/2" X 11") (SUB FOR AT42270, THIS APPLICATION)

1шт.

4

AR26674

ELBOW FITTING

1шт.

5

19H1648

CAP SCREW

3/8" X 3/4"

5шт.

6

12H304

LOCK WASHER

3/8"

5шт.

7

T24957

CLAMP

5шт.

8

AT65436

TUBE

(SUB FOR AT51843)

1шт.

9

T24945

ELBOW FITTING

2шт.

10

AT44801

HYDRAULIC HOSE - FABRICATE

407 MM LONG (1/2" X 16") (SUB FOR AT45498 AND AR47296, THIS APPLICATION)

1шт.
