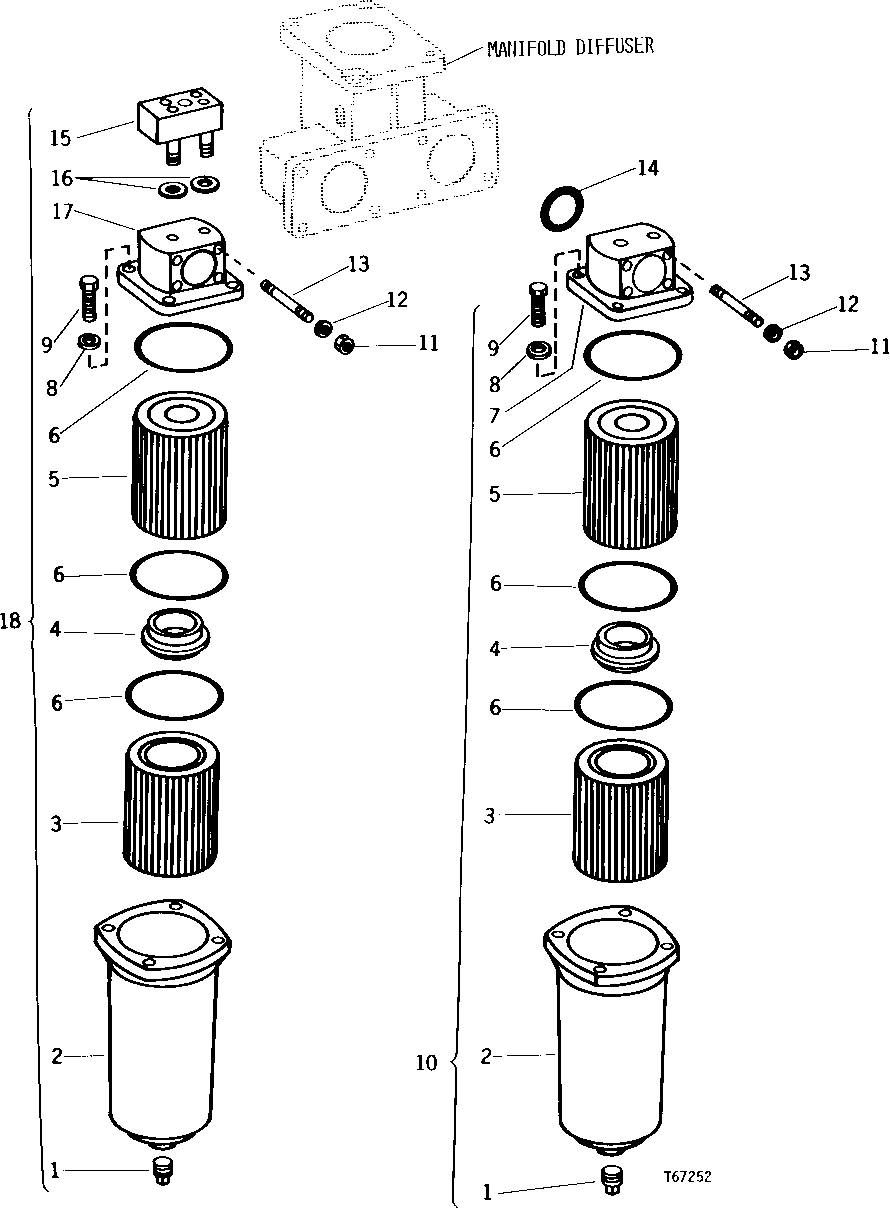

Запчасти John Deere 90 38 - HYDRAULIC RETURN LINE FILTER 3360 - BACKHOE AND EXCAVATOR 33

1

15H623

PIPE PLUG

3/8"

2шт.

2

T47241

HOUSING

2шт.

3

AT71582

FILTER ELEMENT

(SUB FOR AT45810, THIS APPLICATION)

2шт.

4

T47242

SLEEVE

2шт.

5

AT71583

FILTER ELEMENT

(SUB FOR AT45811, THIS APPLICATION)

2шт.

6

R34733

WASHER

6шт.

7

AT45809

CAP

1шт.

8

24H1685

WASHER

11/32" X 47/64" X 0.083"

8шт.

9

19H2698

CAP SCREW

7/16" X 2"

8шт.

10

FILTER

( AT45804, USE IF AVAILABLE)

1шт.

11

14H785

NUT

5/16"

8шт.

12

24M7055

WASHER

8.400 X 16 X 1.600 MM

8шт.

13

R51284

STUD

8шт.

14

T42777

SEALING WASHER

(SUB FOR M4237T, THIS APPLICATION)

2шт.

15

AT45780

SWITCH

1шт.

16

R26976

O-RING

2шт.

17

AT46345

CAP

1шт.

18

FILTER

( AT45805, USE IF AVAILABLE)

1шт.
