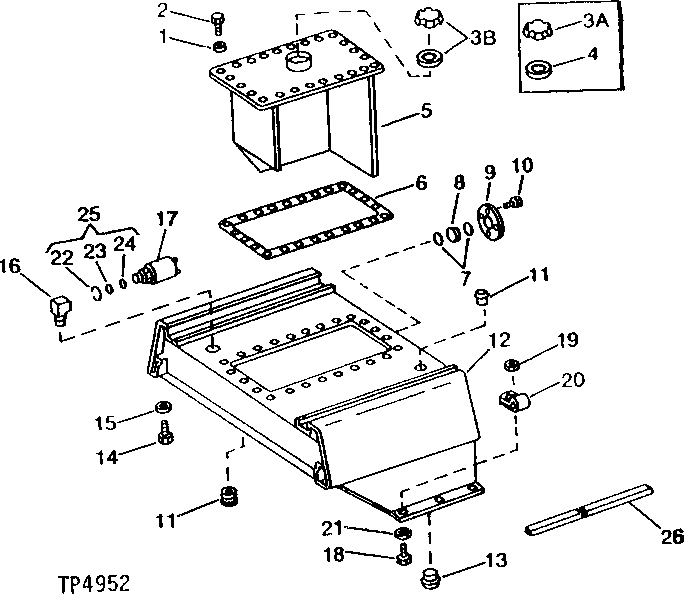

Запчасти John Deere 90 34 - HYDRAULIC RESERVOIR 3360 - BACKHOE AND EXCAVATOR 33

1

12H304

LOCK WASHER

3/8"

24шт.

2

19H3239

CAP SCREW

3/8" X 1-1/4"

24шт.

3A

T50842

FILLER CAP

(SUB AT65412, THIS APPLICATION)

1шт.

3B

AT65412

CAP

WITH WASHER

1шт.

4

T103461

SEALING WASHER

(SUB FOR T25551)

1шт.

5

AT45806

COVER

1шт.

6

T47234

GASKET

1шт.

7

N131838

O-RING

2шт.

8

U13425

WINDOWPANE

1шт.

9

U13551

WASHER

1шт.

10

21H1300

SCREW

0.190" X 3/8"

4шт.

11

15H665

PIPE PLUG

3/4"

3шт.

12

AT45796

HYDRAULIC RESERVOIR

1шт.

13

U17027

FITTING

1шт.

14

19H3472

CAP SCREW

5/8" X 9-3/4"

4шт.

15

24H1625

WASHER

17/32" X 1" X 0.120"

6шт.

16

15H621

ELBOW FITTING

(SUB FOR T47235)

1шт.

17

AT45808

RELIEF VALVE

1шт.

18

19H1793

CAP SCREW

1/2" X 2"

2шт.

19

14H1040

NUT

1/2"

2шт.

20

R73384

CLAMP

(SUB FOR T24494)

1шт.

21

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

2шт.

22

T65973

SNAP RING

1шт.

23

A3917R

O-RING

1шт.

24

T13119

O-RING

1шт.

25

AT58544

KIT

RELIEF VALVE

1шт.

26

ISOLATOR

203 MM (8") LONG (MAKE FROM R41358, 1.2M (4') BULK)

1шт.
