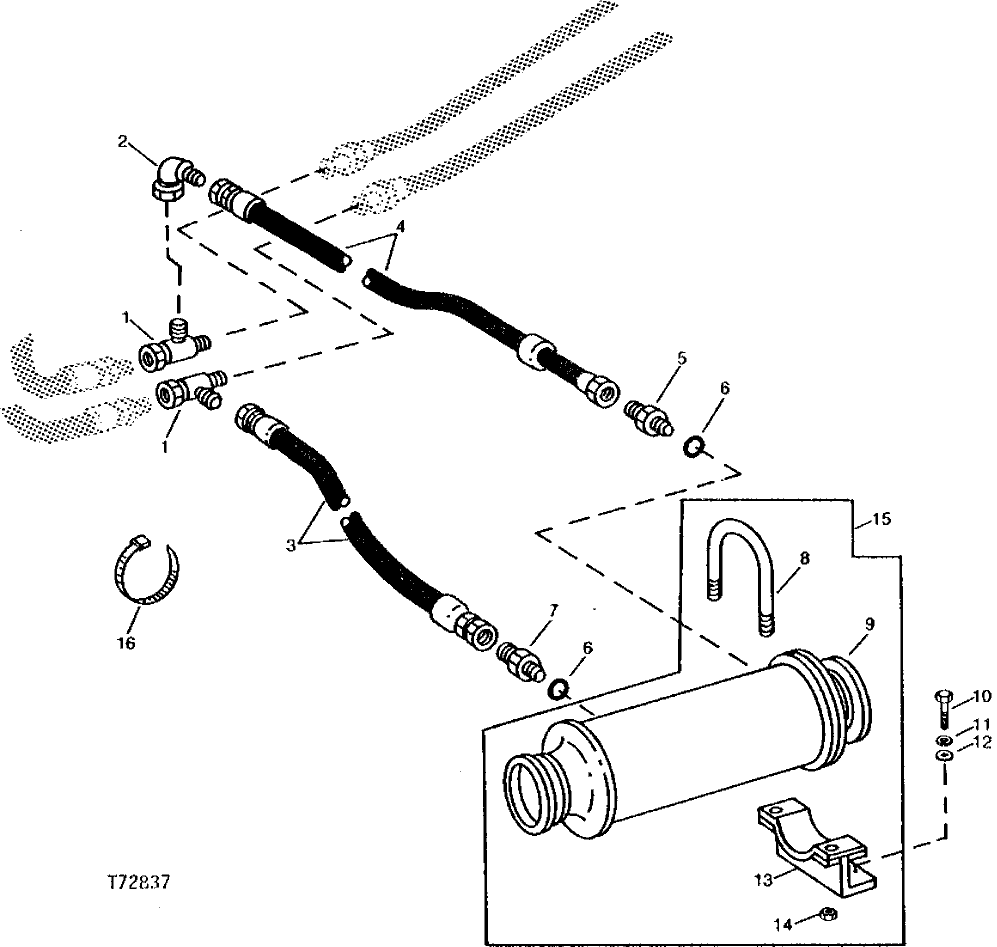

Запчасти John Deere 90 32 - AUXILIARY HYDRAULIC OIL COOLER AND HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

AT65866

TEE FITTING

2шт.

2

AT55078

ELBOW FITTING

1шт.

3

AT65865

HYDRAULIC HOSE

1 981 MM (1-5/8" X 80" LONG)

1шт.

4

AT66736

HYDRAULIC HOSE

1 575 MM (1-1/4" X 62" LONG)

1шт.

5

T49207

ADAPTER FITTING

1шт.

6

R29936

O-RING

2шт.

7

T49207

ADAPTER FITTING

1шт.

8

T68779

U-BOLT

2шт.

9

HOUSING

(SUB AT65863)

1шт.

10

19H118

CAP SCREW

5/16" X 1"

4шт.

11

12H303

LOCK WASHER

5/16"

4шт.

12

24H1136

WASHER

11/32" X 11/16" X 0.065"

4шт.

13

AT65864

BRACKET

2шт.

14

14H812

NUT

3/8"

4шт.

15

AT65863

OIL COOLER

1шт.

16

H77698

TIE BAND

(SUB FOR T44946)

2шт.
