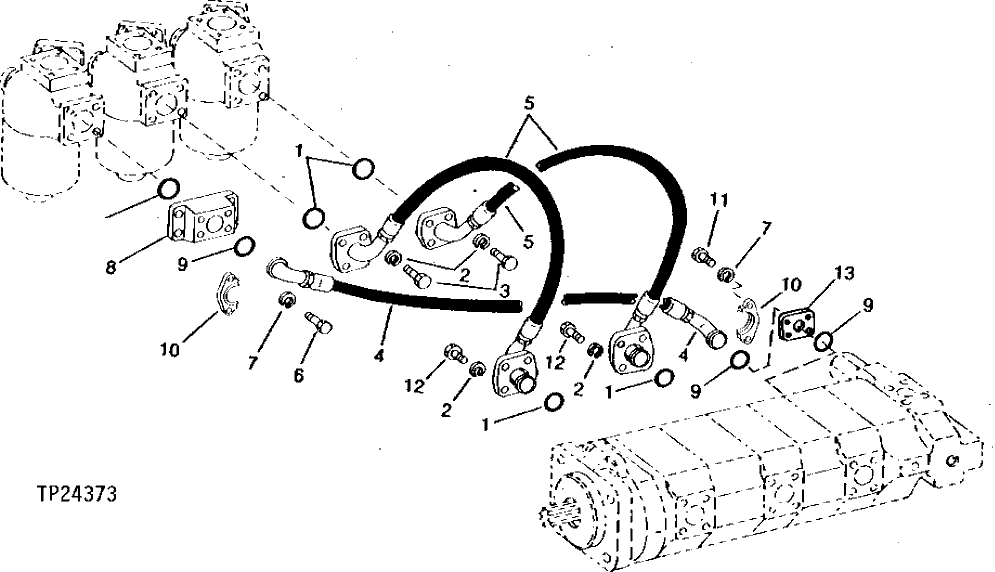

Запчасти John Deere 90 30 - PUMP TO PRESSURE FILTER HYDRAULICS 3360 - BACKHOE AND EXCAVATOR 33

1

T34248

O-RING

6шт.

2

12H301

LOCK WASHER

1/2"

20шт.

3

19H2735

CAP SCREW

1/2" X 2"

8шт.

4

AT62044

HYDRAULIC HOSE - FABRICATE

875 MM (1" X 34-1/2" LONG) (SUB FOR AT60885)

1шт.

AT72515

HYDRAULIC HOSE - FABRICATE

(K) (USE WITH AT125476 HYDRAULIC PUMP)

1шт.

5

AT57861

HYDRAULIC HOSE - FABRICATE

1 016 MM (1-1/2" X 40" LONG)

2шт.

6

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

7

12H304

LOCK WASHER

3/8"

4шт.

8

T64056

ADAPTER FITTING

1шт.

9

T78313

O-RING

(SUB FOR H61355)

2шт.

T78313

O-RING

(SUB FOR H61355) (USE (1) WITH AT69257 CHECK VALVE)

3шт.

10

H61354

FLANGE FITTING

4шт.

11

19H2633

CAP SCREW

3/8" X 1-1/2"

4шт.

19H3031

CAP SCREW

3/8" X 2-1/2", (USE WITH AT69257 CHECK VALVE)

4шт.

12

19H1831

CAP SCREW

1/2" X 2"

8шт.

13

AT69257

CHECK VALVE

(USE WITH AT125476 HYDRAULIC PUMP)

1шт.
