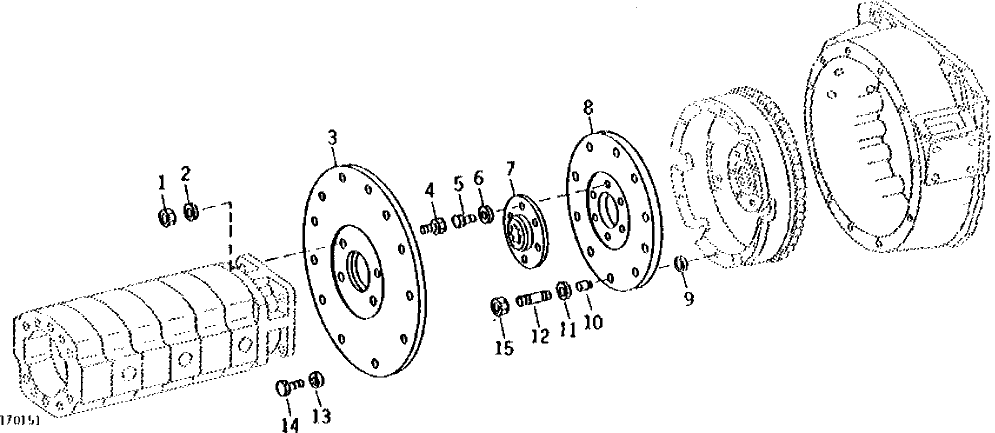

Запчасти John Deere 90 29 - HYDRAULIC PUMP AND MOUNTING PLATE 3360 - BACKHOE AND EXCAVATOR 33

1

14H1040

NUT

(K) 1/2"

4шт.

2

T20168

WASHER

(K)

4шт.

3

T62262

PLATE

1шт.

4

19H2880

CAP SCREW

1/2" X 1-3/4"

4шт.

19H3263

CAP SCREW

(K) 1/2" X 2-1/2", (USE WITH AT125476 HYDRAULIC PUMP)

4шт.

5

19H2898

CAP SCREW

1/2" X 1-1/4"

6шт.

6

24H1341

WASHER

17/32" X 15/16" X 0.060"

6шт.

7

T47062

HUB

1шт.

8

T47065

PLATE

1шт.

9

R57696

WASHER

(SUB FOR R1870R)

10шт.

10

T47063

ISOLATOR

10шт.

11

24M7101

WASHER

11 X 34 X 3 MM

10шт.

12

T63877

STUD

10шт.

13

24H1219

WASHER

7/16" X 1" X 0.083"

12шт.

T105740

WASHER

(K) (USE WITH AT125476 HYDRAULIC PUMP)

12шт.

14

19H3104

CAP SCREW

7/16" X 1-1/4"

12шт.

19H3104

CAP SCREW

(K) 7/16" X 1-1/4", (USE WITH AT125476 HYDRAULIC PUMP)

12шт.

15

14H1053

NUT

3/8"

10шт.
