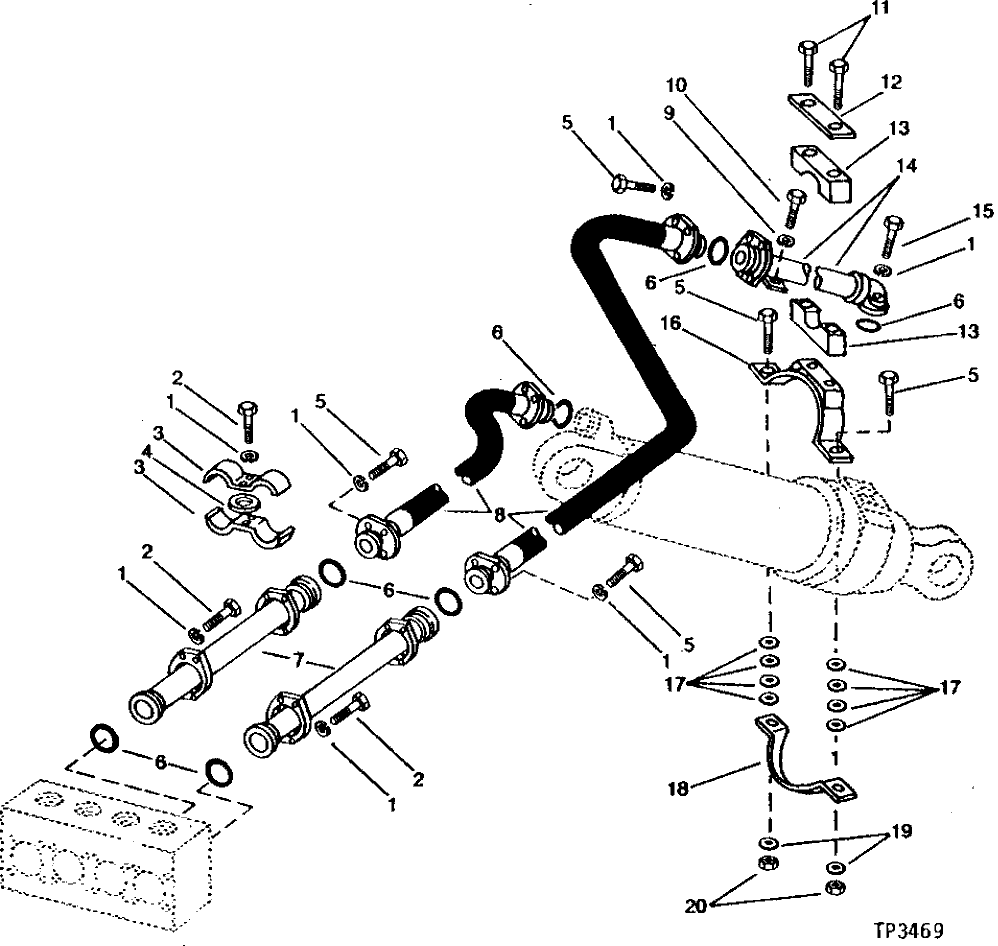

Запчасти John Deere 90 18 - BOOM TUBE BLOCK TO CROWD CYLINDER HYDRAULICS 3360 - BACKHOE AND EXCAVATOR 33

1

12H301

LOCK WASHER

1/2"

24шт.

2

19H2993

CAP SCREW

1/2" X 1-1/2"

10шт.

3

T47654

CLAMP

2шт.

4

T20168

WASHER

2шт.

5

19H2473

CAP SCREW

1/2" X 1-3/4"

18шт.

6

T72221

O-RING

7шт.

7

AT46311

LINE

2шт.

8

AT46312

HYDRAULIC HOSE

1-1/2" X 1 803 MM (71") X 1-1/2"

2шт.

9

24H1227

WASHER

17/32" X 13/16" X 0.060"

1шт.

10

19H3472

CAP SCREW

5/8" X 9-3/4"

1шт.

11

19H2458

CAP SCREW

3/8" X 3"

2шт.

12

U16466

STRAP

1шт.

13

AT144117

CLAMP

PACKAGE OF 2 HALVES, (SUB FOR T67995)

2шт.

14

AT46313

LINE

1шт.

15

19H3520

CAP SCREW

1/2" X 3-1/4"

4шт.

16

AT64832

BRACKET

1шт.

17

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

8шт.

18

T48067

CLAMP

1шт.

19

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

2шт.

20

K40014

LOCK NUT

(SUB FOR BP12214)

2шт.
