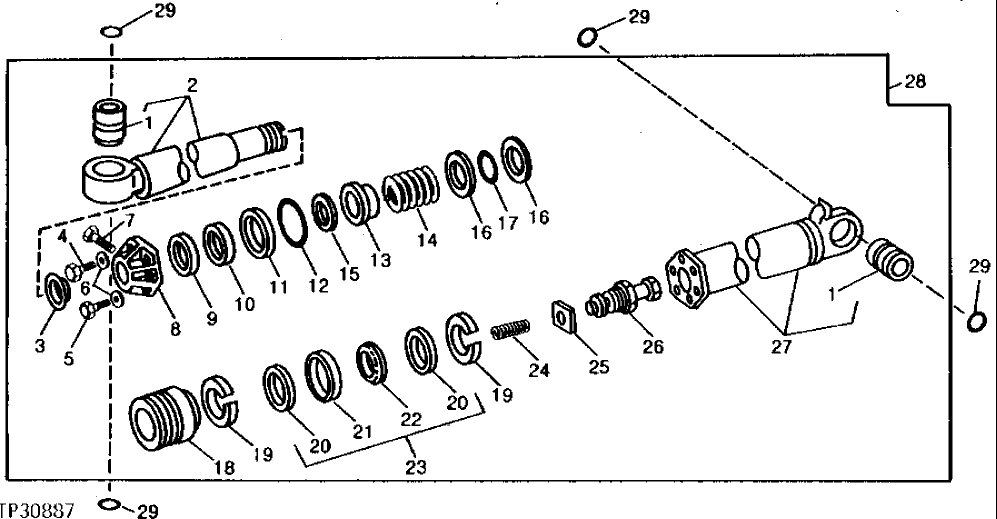

Запчасти John Deere 90 15 - CROWD CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

T46610

BUSHING

2шт.

2

AR90893

ROD

1шт.

3

T46617

SEAL

(BK)

1шт.

4

19H3313

CAP SCREW

1" X 4-1/2"

4шт.

5

19H3314

SCREW

1" X 5-1/4"

2шт.

6

T30636

WASHER

1-3/4" X 1/4"

6шт.

7

19H1895

CAP SCREW

1/2" X 3/4"

2шт.

8

T46616

GUIDE

1шт.

9

T46618

WEAR RING

(BK)

1шт.

10

R76773

SEAL

(BK)

1шт.

11

R78807

BACK-UP RING

(RK) (SUB FOR T46621, THIS APPLICATION)

1шт.

12

T46620

O-RING

(RK)

1шт.

13

T46625

POPPET

1шт.

14

T57339

SPRING

1шт.

15

T46629

WEAR RING

BRAKE

1шт.

16

R78808

BACK-UP RING

(BK) (SUB FOR T59925)

2шт.

17

T59924

RING

(BK)

1шт.

18

R77649

PISTON

TWO WEAR RINGS AND ONE SEAL, (USE WITH RE11563 SEAL AND (2) R77642 WEAR RINGS)

1шт.

19

R77642

RING

(RK)

2шт.

20

BACK-UP RING

(SUB RE11563)

2шт.

21

CAP

(SUB RE11563)

1шт.

22

SEAL

(SUB RE11563)

1шт.

23

RE11563

SEAL

(RK)

1шт.

24

T57338

SPRING

1шт.

25

T57335

STRAP

1шт.

26

AT45325

POPPET

1шт.

27

RE13870

HYDRAULIC CYLINDER BARREL

(SUB FOR AR96280)

1шт.

28

RE11568

HYDRAULIC CYLINDER

(SUB RE21195)

1шт.

29

T46611

SEAL

4шт.
