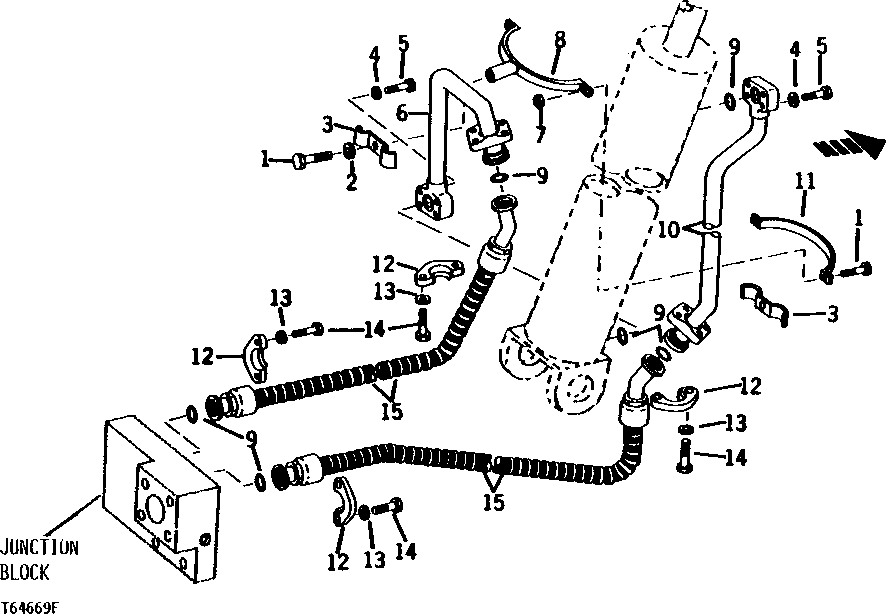

Запчасти John Deere 90 11 - RIGHT-HAND BOOM CYLINDER FRONT HYDRAULIC LINES AND HOSES 3360 - BACKHOE AND EXCAVATOR 33

1

19H2898

CAP SCREW

1/2" X 1-1/4"

3шт.

2

12H301

LOCK WASHER

1/2"

3шт.

3

T52685

CLAMP

2шт.

4

12H293

LOCK WASHER

7/16"

8шт.

5

19H2106

CAP SCREW

7/16" X 2-3/4"

8шт.

6

AT46580

TUBE

1шт.

7

BP12214

LOCK NUT

2шт.

8

AT46584

CLAMP

1шт.

9

N131838

O-RING

6шт.

10

AT46581

LINE

1шт.

11

T48067

CLAMP

1шт.

12

R29867

FLANGE FITTING

8шт.

13

12H293

LOCK WASHER

7/16"

16шт.

14

19H3205

CAP SCREW

7/16" X 1-1/2"

16шт.

15

AT46579

HYDRAULIC HOSE - FABRICATE

1-1/4" X 1 270 MM (50") X 1-1/4"

1шт.
