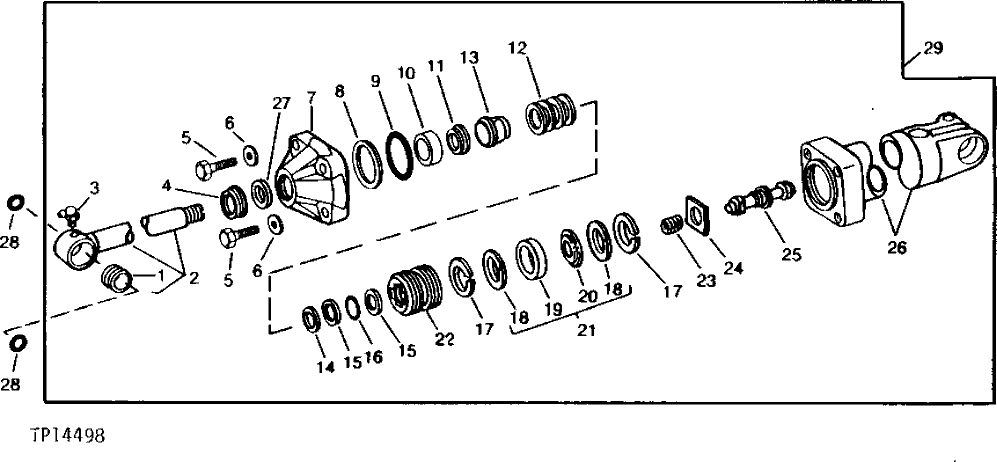

Запчасти John Deere 90 10 - REPLACEMENT BOOM CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

T46634

BUSHING

1шт.

2

AR92237

ROD

1шт.

3

JD7781

LUBRICATION FITTING

1/8"

1шт.

4

RE21204

SEAL

(RK)

1шт.

5

19H3556

CAP SCREW

HS, SAE 8, 1" X 4-1/4"

4шт.

6

T30636

WASHER

4шт.

7

R82285

HYDR. CYLINDER ROD GUIDE

1шт.

8

R78807

BACK-UP RING

(BK) (SUB FOR T46621, THIS APPLICATION)

1шт.

9

T46620

O-RING

(BK)

1шт.

10

R83321

WEAR RING

(RK) (SUB FOR R82284, THIS APPLICATION)

1шт.

11

RE21206

SEAL

(RK)

1шт.

12

T46645

SPRING

L.H

1шт.

13

AT45320

POPPET

1шт.

14

T46646

WEAR RING

BRAKE

1шт.

15

R78809

BACK-UP RING

(RK) (SUB FOR T42032, THIS APPLICATION)

2шт.

16

A5598R

O-RING

(RK)

1шт.

17

R77642

RING

(BK)

2шт.

18

BACK-UP RING

(SUB RE11563)

2шт.

19

SEAL

CAP, (SUB RE11563)

1шт.

20

SEAL

EXPANDER, (SUB RE11563)

1шт.

21

RE11563

SEAL

(BK)

1шт.

22

R77650

PISTON

1шт.

23

T57337

SPRING

1шт.

24

T57336

STRAP

1шт.

25

T46644

POPPET

1шт.

26

RE13866

HYDRAULIC CYLINDER BARREL

(SUB FOR AR96278)

1шт.

27

RE21205

SEAL

(RK)

1шт.

28

T46635

SEAL

1шт.

29

RE21201

HYDRAULIC CYLINDER

1шт.
