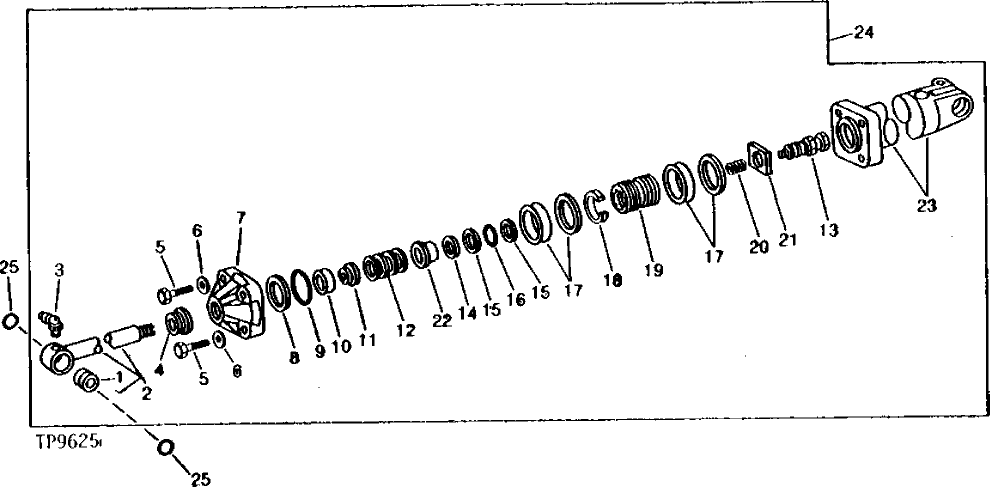

Запчасти John Deere 90 8 - BOOM CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

T46634

BUSHING

1шт.

2

AR92237

ROD

1шт.

3

JD7781

LUBRICATION FITTING

1/8"

1шт.

4

T46639

SEAL

(RK)

1шт.

5

19H3556

CAP SCREW

HS, SAE 8, 1" X 4-1/4"

4шт.

6

T30636

WASHER

4шт.

7

T59930

GUIDE

1шт.

8

R78807

BACK-UP RING

(RK) (SUB FOR T46621, THIS APPLICATION)

1шт.

9

T46620

O-RING

(RK)

1шт.

10

T46640

WEAR RING

(RK)

1шт.

11

T48355

SEAL

(RK)

1шт.

12

T46645

SPRING

L. HAND

1шт.

13

AT45320

POPPET

1шт.

14

T46646

WEAR RING

BRAKE

1шт.

15

R79122

BACK-UP RING

(SUB FOR T42032, THIS APPLICATION)

2шт.

16

A5598R

O-RING

(RK)

1шт.

17

AR104162

SEAL

(RK) (USE WITH R70961) (SUB FOR AR95512)

2шт.

18

R72663

WEAR RING

(RK) (USE WITH R70961)

1шт.

19

R70961

PISTON

ONE WEAR RING AND TWO SEALS (USE WITH (2) AR104162 SEALS AND R72663 WEAR RING) (SUB R77650, RE14033, AND RE14034)

1шт.

20

T57337

SPRING

1шт.

21

T57336

STRAP

1шт.

22

T46644

POPPET

1шт.

23

RE13866

HYDRAULIC CYLINDER BARREL

(SUB FOR AT45314 AND AR96278)

1шт.

24

AR96273

HYDRAULIC CYLINDER

(SUB FOR AR92236 AND AR93237) (SUB RE21201)

1шт.

25

T46635

SEAL

2шт.
