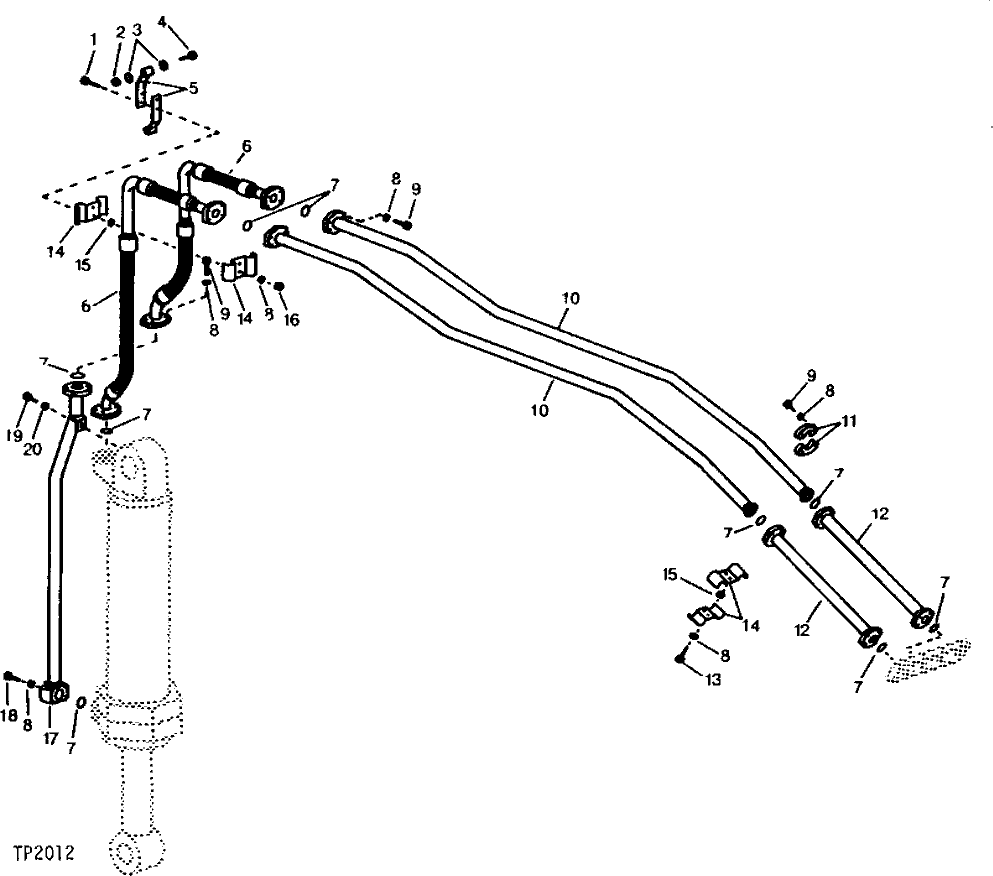

Запчасти John Deere 90 4 - BUCKET CYLINDER DIPPERSTICK HYDRAULICS 3360 - BACKHOE AND EXCAVATOR 33

1

19H1004

CAP SCREW

1/2" X 2-1/4"

2шт.

2

H32811

LOCK NUT

(SUB FOR U14502)

2шт.

3

E14275

WASHER

4шт.

4

19H2644

CAP SCREW

1/2" X 2-1/2"

2шт.

5

AT58140

GUARD

2шт.

6

AT46316

HYDRAULIC HOSE

1 529 MM (1-1/2" X 60" LONG)

2шт.

7

T34248

O-RING

9шт.

8

12H301

LOCK WASHER

1/2"

38шт.

9

19H2993

CAP SCREW

1/2" X 1-1/2"

24шт.

10

AT46319

TUBE

2шт.

11

X51H-24

FLANGE FITTING

(SUB FOR T47649) SPLIT FLANGE HALF

4шт.

12

AT46311

LINE

2шт.

13

19H2473

CAP SCREW

1/2" X 1-3/4"

8шт.

14

T47654

CLAMP

10шт.

15

T20168

WASHER

4шт.

16

14H1040

NUT

1/2"

2шт.

17

AT46317

LINE

1шт.

18

19H3520

CAP SCREW

1/2" X 3-1/4"

4шт.

19

19H3472

CAP SCREW

5/8" X 9-3/4"

1шт.

20

24H1227

WASHER

17/32" X 13/16" X 0.060"

1шт.
