3 - DIG VALVE TO BOOM TUBE BLOCK BUCKET AND CROWD CYLINDER HYDRAULICS

Запчасти John Deere 90 3 - DIG VALVE TO BOOM TUBE BLOCK BUCKET AND CROWD CYLINDER HYDRAULICS 3360 - BACKHOE AND EXCAVATOR 33

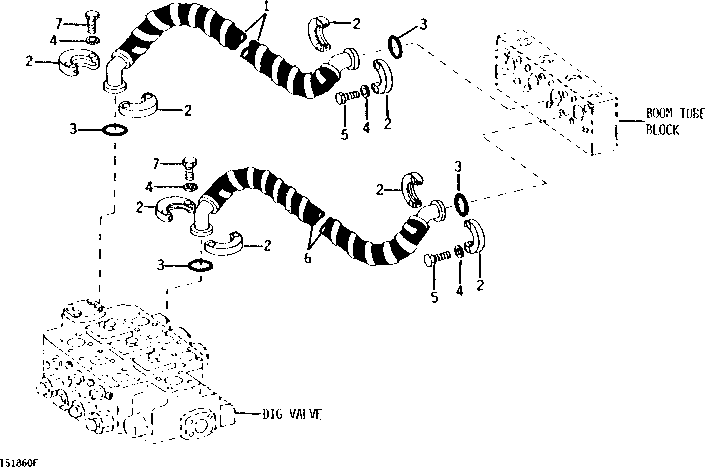

Схема запчастей John Deere 90 - 3 - DIG VALVE TO BOOM TUBE BLOCK BUCKET AND CROWD CYLINDER HYDRAULICS 3360 - BACKHOE AND EXCAVATOR 33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT46310

HYDRAULIC HOSE

1 854 MM LONG (1-1/2" X 73")

1шт.

2

X51H-24

FLANGE FITTING

(SUB FOR T47649)

8шт.

3

T34248

O-RING

4шт.

4

12H301

LOCK WASHER

1/2"

16шт.

5

19H1820

CAP SCREW

1/2" X 3"

8шт.

6

AT46310

HYDRAULIC HOSE

1 854 MM LONG (1-1/2" X 73") (SUB FOR AT46309)

1шт.

7

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

Выбрано товаров: 0
