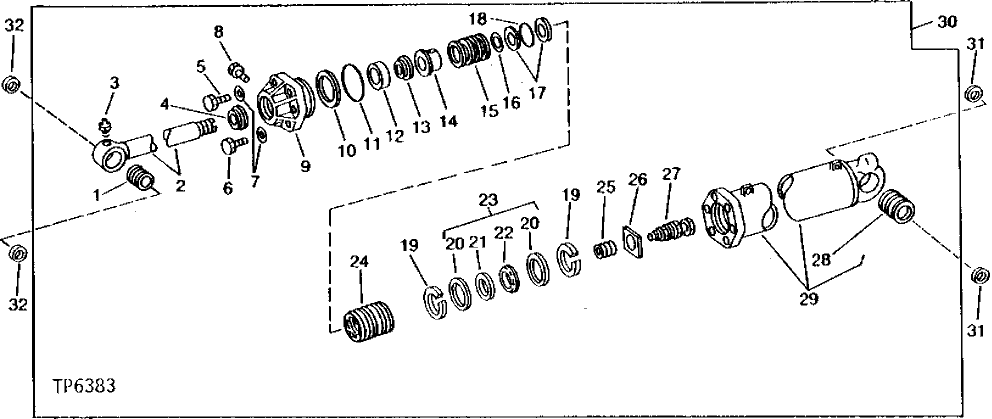

Запчасти John Deere 90 2 - REPLACEMENT BUCKET CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

T46612

BUSHING

1шт.

2

AT45310

ROD

1шт.

3

JD7759

LUBRICATION FITTING

1/8"

1шт.

4

T46617

SEAL

(RK)

1шт.

5

19H3313

CAP SCREW

1" X 4-1/2"

4шт.

6

19H3314

SCREW

1" X 5-1/4"

2шт.

7

T30636

WASHER

6шт.

8

19H1895

CAP SCREW

1/2" X 3/4"

2шт.

9

T46616

GUIDE

1шт.

10

R78807

BACK-UP RING

(BK) (SUB FOR T46621, THIS APPLICATION)

1шт.

11

T46620

O-RING

(BK)

1шт.

12

T46618

WEAR RING

(RK)

1шт.

13

R76773

SEAL

(RK)

1шт.

14

T57334

BUSHING

1шт.

15

T46626

SPRING

1шт.

16

T46629

WEAR RING

(PISTON BRAKE)

1шт.

17

R78808

BACK-UP RING

(RK) (SUB FOR T59925)

2шт.

18

T59924

RING

(RK)

1шт.

19

R77642

RING

(BK)

2шт.

20

BACK-UP RING

(SUB RE11563)

2шт.

21

CAP

(SUB RE11563)

1шт.

22

SEAL

(SUB RE11563)

1шт.

23

RE11563

SEAL

(BK)

1шт.

24

R77651

PISTON

TWO WEAR RINGS AND ONE SEAL (USE WITH RE11563 SEAL AND (2) R77642 WEAR RINGS)

1шт.

25

T58997

SPRING

1шт.

26

T57335

STRAP

1шт.

27

AT56647

POPPET

1шт.

28

T46610

BUSHING

1шт.

29

RE13868

HYDRAULIC CYLINDER BARREL

(SUB FOR AR96279)

1шт.

30

HYDRAULIC CYLINDER

( RE11571 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)

1шт.

31

T46611

SEAL

2шт.

32

T72099

SEAL

2шт.
