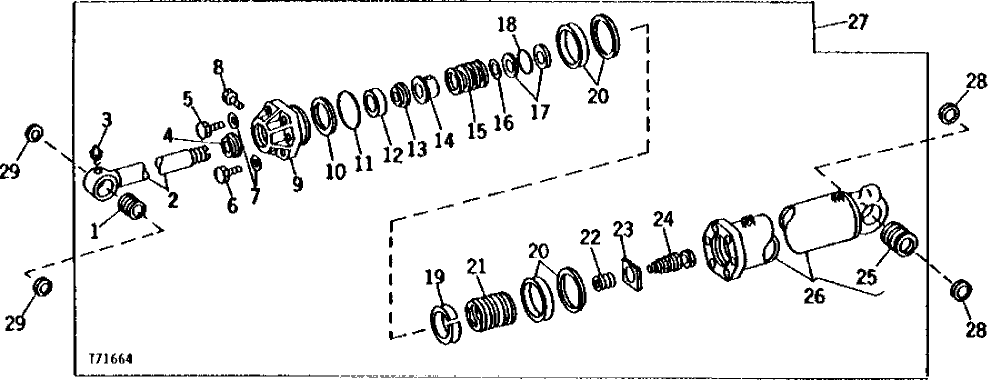

Запчасти John Deere 90 1A - BUCKET CYLINDER 3360 - BACKHOE AND EXCAVATOR 33

1

T46612

BUSHING

1шт.

2

AT45310

ROD

1шт.

3

JD7759

LUBRICATION FITTING

1/8", GREASE, STRAIGHT

1шт.

4

T46617

SEAL

(RK)

1шт.

5

19H3313

CAP SCREW

1" X 4-1/2"

4шт.

6

19H3314

SCREW

1" X 5-1/4"

2шт.

7

T30636

WASHER

6шт.

8

19H1895

CAP SCREW

1/2" X 3/4"

2шт.

9

T46616

GUIDE

1шт.

10

R78807

BACK-UP RING

(RK) (SUB FOR T46621, THIS APPLICATION)

1шт.

11

T46620

O-RING

(RK)

1шт.

12

T46618

WEAR RING

(RK)

1шт.

13

R76773

SEAL

(RK) (SUB FOR T46619)

1шт.

14

T57334

BUSHING

1шт.

15

T46626

SPRING

1шт.

16

T46629

WEAR RING

(PISTON BRAKE)

1шт.

17

R78808

BACK-UP RING

(RK) (SUB FOR T59925)

2шт.

18

T59924

RING

(RK)

1шт.

19

R72663

WEAR RING

(RK) (USE WITH T46622 AND R70963) (SUB FOR T46624, THIS APPLICATION)

1шт.

20

AR104162

SEAL

(RK) (USE WITH T46622 AND R70963) (SUB FOR T46623) (SUB FOR AR91556 AND AR95512, THIS APPLICATION)

2шт.

21

T46622

PISTON

ONE WEAR RING AND TWO SEALS (USE WITH (2) AR104162 SEALS AND R72663 WEAR RING) (SUB R77651, RE14032 AND RE14033)

1шт.

R70963

PISTON

(USE WITH (2) AR104162 SEALS AND R72663 WEAR RINGS) (SUB R77651, RE14032 AND RE14033)

1шт.

22

T58997

SPRING

1шт.

23

T57335

STRAP

1шт.

24

AT56647

POPPET

1шт.

25

T46610

BUSHING

1шт.

26

RE13868

HYDRAULIC CYLINDER BARREL

(SUB FOR AT45306 AND AR96279)

1шт.

27

AT45305

CYLINDER

(SUB AR105292)

1шт.

HYDRAULIC CYLINDER

(SUB FOR AR93239 AND AR96274) ( AR105292 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)

1шт.

28

T46611

SEAL

2шт.

29

T46613

SEAL

2шт.
