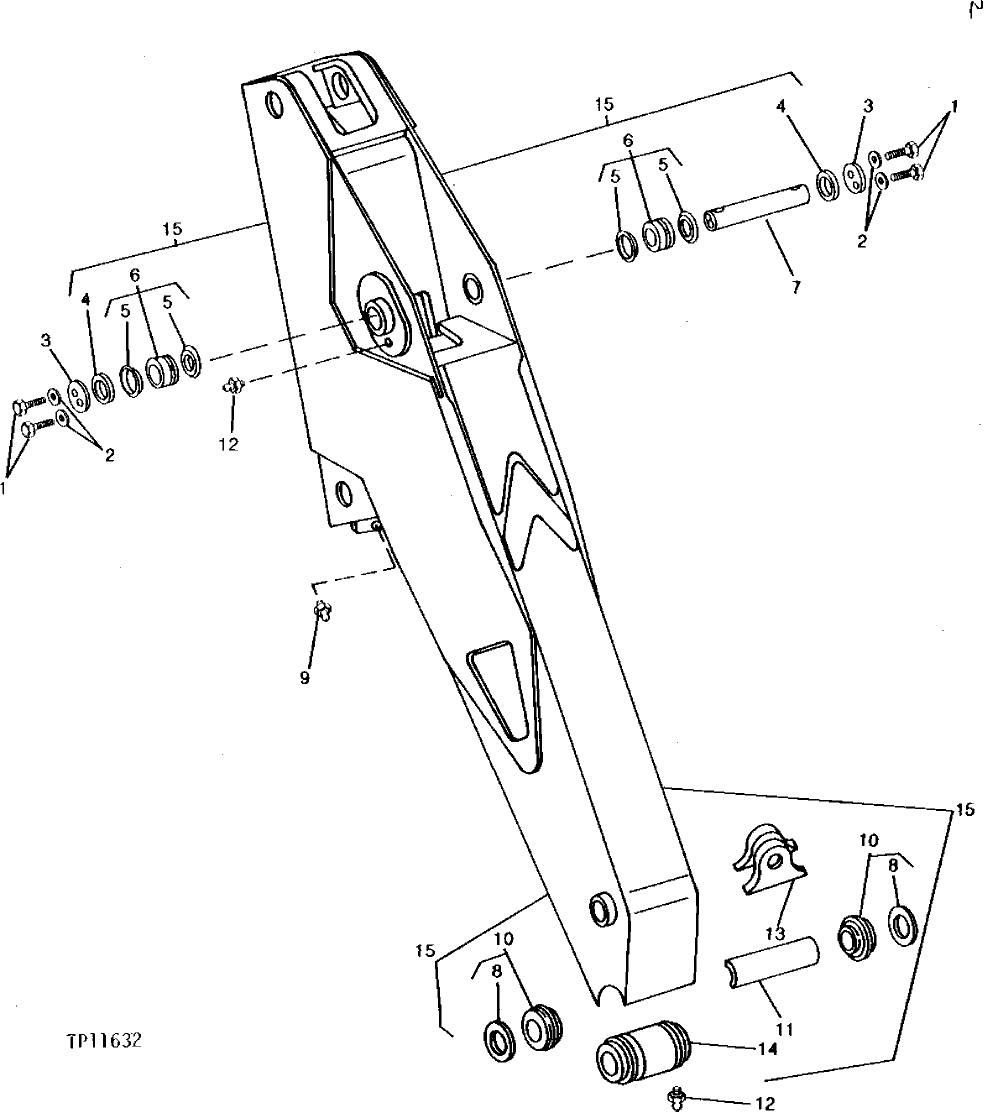

Запчасти John Deere 90 4 - DIPPERSTICK 3340 - BACKHOE AND EXCAVATOR 33

1

T55579

BOLT

4шт.

2

T17776

WASHER

(SUB FOR T10510)

4шт.

3

T48908

RETAINER

2шт.

4

T54189

THRUST WASHER

ARшт.

T54192

WASHER

ARшт.

5

T46635

SEAL

4шт.

6

AT47491

BUSHING

WITH SEALS

2шт.

7

T48910

PIN

BOOM TO DIPPERSTICK

1шт.

8

T46613

SEAL

2шт.

9

JD7763

LUBRICATION FITTING

1/8", STRAIGHT

2шт.

10

AT74892

BUSHING

WITH SEALS (SUB FOR AT47513)

2шт.

11

T53928

RETAINER

1шт.

12

JD7759

LUBRICATION FITTING

1/8", STRAIGHT

3шт.

13

T60809

PLATE

2шт.

14

AT76922

PIVOT

1шт.

15

AT58647

DIPPERSTICK

WITH BUSHINGS AND SEALS

1шт.
