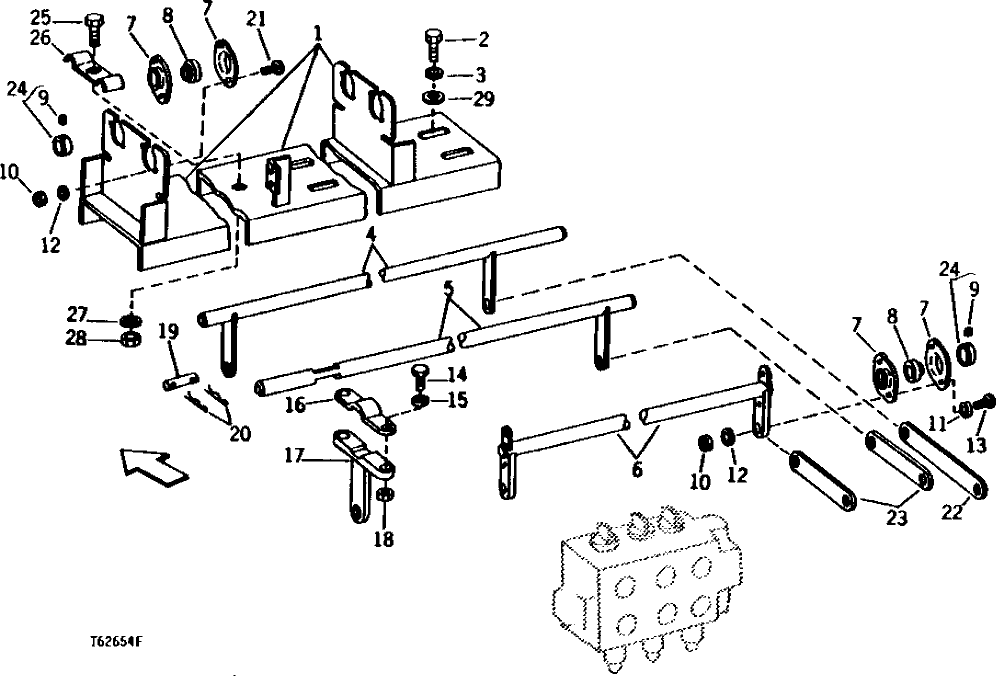

Запчасти John Deere 90 4 - VALVE LINKAGE 3315 - BACKHOE AND EXCAVATOR 33

1

BRACKET

( AT48011 USE IF AVAILABLE)

1шт.

2

19H1356

CAP SCREW

5/8" X 1-3/4"

8шт.

3

24H1367

WASHER

21/32" X 1-1/4" X 1/4"

8шт.

4

ROD

( AT48012 USE IF AVAILABLE)

1шт.

5

ROD

( AT48015 USE IF AVAILABLE)

1шт.

6

PIVOT

( AT48014 USE IF AVAILABLE)

1шт.

7

L2287C

PRESSED FLANGED HOUSING

12шт.

8

JD8555

BALL BEARING

6шт.

9

E18630

SET SCREW

6шт.

10

14H785

NUT

5/16"

12шт.

11

28H1514

SPACER

1/4" X 9/16"

4шт.

12

12H303

LOCK WASHER

5/16"

12шт.

13

03H2209

BOLT

5/16" X 1-3/4"

4шт.

14

19H3065

CAP SCREW

3/8" X 2"

2шт.

15

12H304

LOCK WASHER

3/8"

2шт.

16

U45928

BELLCRANK

1шт.

17

T49452

LINK

1шт.

18

14H812

NUT

3/8"

5шт.

19

U46245

PIN FASTENER

6шт.

20

11M7015

COTTER PIN

3.200 X 25 MM

12шт.

21

03H1540

BOLT

5/16" X 3/4"

8шт.

22

LINK

BUCKET ( T48561 USE IF AVAILABLE)

2шт.

23

LINK

BOOM AND CROWD ( T48562 USE IF AVAILABLE)

4шт.

24

JD8554

ECCENTRIC LOCKING COLLAR

6шт.

25

19H3239

CAP SCREW

3/8" X 1-1/4"

1шт.

26

U43303

CLAMP

1шт.

27

24H1305

WASHER

13/32" X 13/16" X 0.065"

1шт.

28

14H812

NUT

3/8"

1шт.

29

24H1360

WASHER

5/8" X 1-15/32" X 0.105"

1шт.
