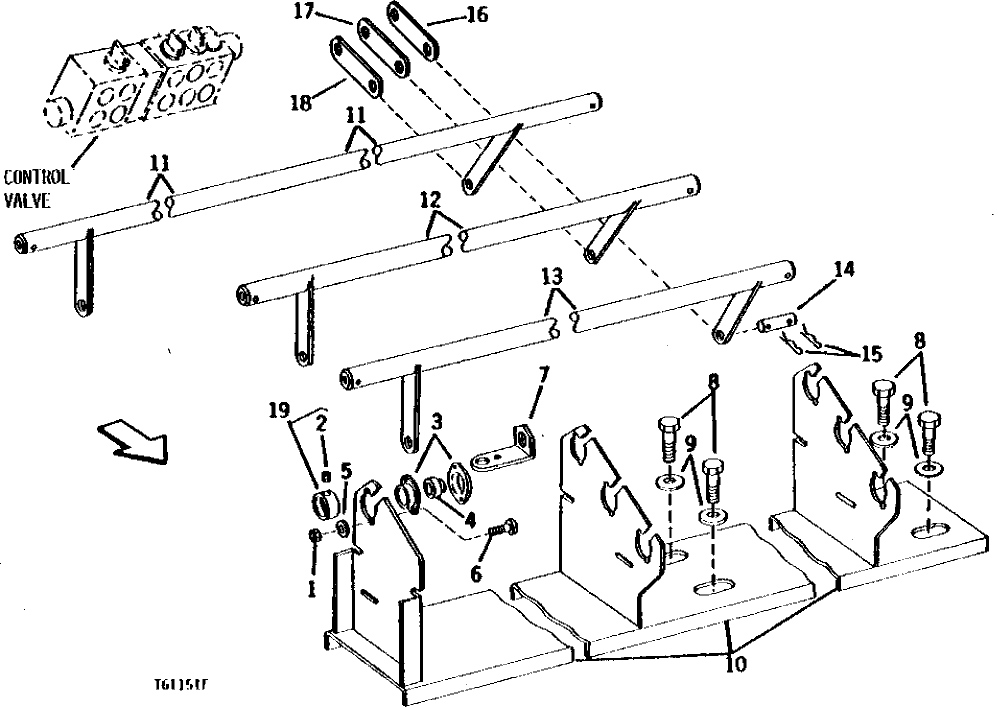

Запчасти John Deere 90 3 - VALVE LINKAGE 3315 - BACKHOE AND EXCAVATOR 33

1

14H785

NUT

5/16"

12шт.

2

E18630

SET SCREW

1шт.

3

L2287C

PRESSED FLANGED HOUSING

12шт.

4

JD8555

BALL BEARING

6шт.

5

12H303

LOCK WASHER

5/16"

12шт.

6

03H2106

BOLT

5/16" X 7/8"

12шт.

7

U44501

BRACKET

2шт.

8

19H2717

CAP SCREW

3/4" X 1-3/4"

4шт.

9

24H1161

WASHER

13/16" X 1-15/32" X 0.134"

8шт.

10

BRACKET

( AT48006 USE IF AVAILABLE)

1шт.

11

ROD

R. PIVOT ( AT48007 USE IF AVAILABLE)

1шт.

12

AT48008

ROD

L. PIVOT

1шт.

13

ROD

( AT48009 USE IF AVAILABLE)

1шт.

14

U46245

PIN FASTENER

6шт.

15

11M7015

COTTER PIN

3.200 X 25 MM

12шт.

16

LINK

SWING (USE WITH AT69147 PUMP) ( T48560 USE IF AVAILABLE)

2шт.

T121669

LINK

(K) SWING (USE WITH AT125476 PUMP)

2шт.

17

LINK

LEFT TRACK (USE WITH AT69147 PUMP) ( T48559 USE IF AVAILABLE)

2шт.

T121670

LINK

(K) LEFT TRACK (USE WITH AT125476 PUMP)

2шт.

18

TRACK LINK

RIGHT (USE WITH AT69147 PUMP) ( T48558 USE IF AVAILABLE)

2шт.

T121671

LINK

(K) RIGHT TRACK (USE WITH AT125476 PUMP)

2шт.

19

JD8554

ECCENTRIC LOCKING COLLAR

6шт.
