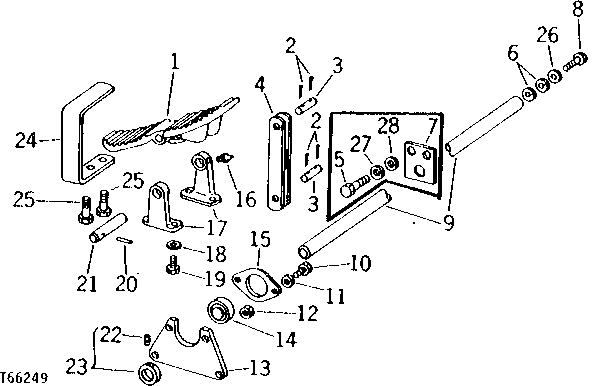

Запчасти John Deere 90 2 - OPERATOR PEDALS 3315 - BACKHOE AND EXCAVATOR 33

1

T35284

PEDAL

2шт.

2

11M7015

COTTER PIN

3.200 X 25 MM

8шт.

3

U46245

PIN FASTENER

4шт.

4

T61265

LINK

4шт.

5

19H2898

CAP SCREW

1/2" X 1-1/4"

2шт.

6

24H1788

WASHER

17/32" X 1-1/8" X 0.060"

4шт.

7

U46379

SUPPORT

1шт.

8

19H2880

CAP SCREW

1/2" X 1-3/4"

2шт.

9

U45628

PIN

1шт.

10

03H1709

BOLT

5/16" X 1"

12шт.

11

12H303

LOCK WASHER

5/16"

12шт.

12

14H785

NUT

5/16"

12шт.

13

U46252

LINK

6шт.

14

JD8555

BALL BEARING

6шт.

15

L2287C

PRESSED FLANGED HOUSING

12шт.

16

JD7806

LUBRICATION FITTING

GREASE

2шт.

17

U45634

SUPPORT

4шт.

18

12H304

LOCK WASHER

3/8"

8шт.

19

19H1648

CAP SCREW

3/8" X 3/4"

8шт.

20

34H284

SPRING PIN

3/16" X 1-1/4"

2шт.

21

U45633

PIN FASTENER

2шт.

22

E18630

SET SCREW

6шт.

23

JD8554

ECCENTRIC LOCKING COLLAR

6шт.

24

T45159

BRACKET

2шт.

25

19H1815

CAP SCREW

1/2" X 1-1/4"

4шт.

26

12H301

LOCK WASHER

1/2"

2шт.

27

12H301

LOCK WASHER

1/2"

2шт.

28

24H1788

WASHER

17/32" X 1-1/8" X 0.060"

2шт.
