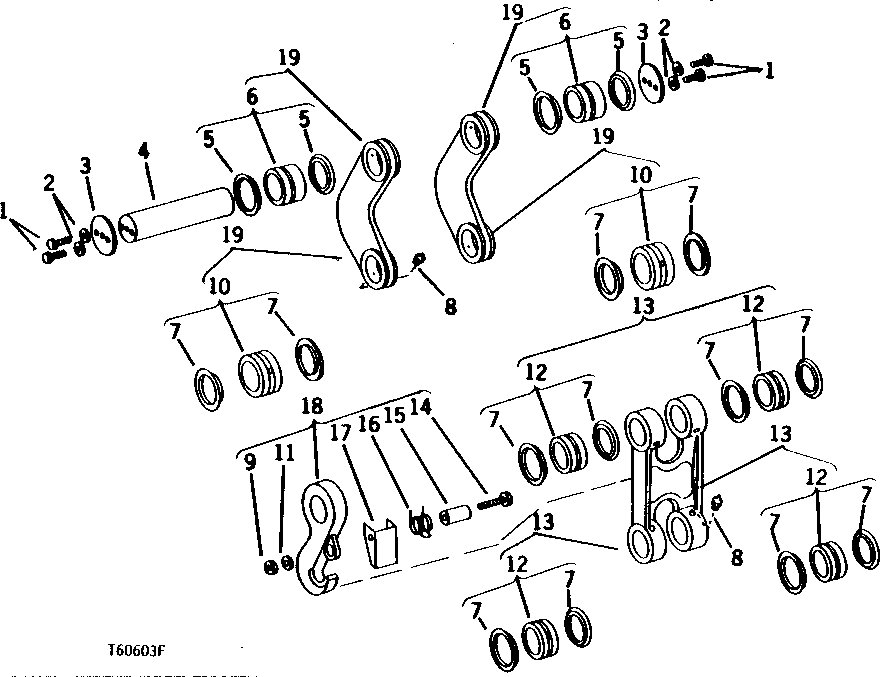

Запчасти John Deere 90 3 - BUCKET LINKS AND LIFT HOOK 3302 - BACKHOE AND EXCAVATOR 33

1

T55579

BOLT

4шт.

2

T17776

WASHER

4шт.

3

T48400

RETAINER

89 MM (3-1/2") PIN

2шт.

4

T48399

PIN FASTENER

1шт.

5

T46611

SEAL

4шт.

6

BUSHING

(SUB FOR T58626) (WHEN AT59239 IS NO LONGER AVAILABLE, SUB T58626 AND (2) T46611)

2шт.

7

T46613

SEAL

102 MM (4") PIN

12шт.

8

JD7759

LUBRICATION FITTING

1/8", GREASE, STRAIGHT

8шт.

9

T11234

LOCK NUT

3/8"

1шт.

10

BUSHING

(SUB FOR T58625) (WHEN AT59238 IS NO LONGER AVAILABLE, SUB T58625 AND (2) T46613)

2шт.

11

24H1305

WASHER

13/32" X 13/16" X 0.065"

2шт.

12

BUSHING

(SUB FOR T60119) (WHEN AT59237 IS NO LONGER AVAILABLE, SUB T60119 AND (2) T46613)

4шт.

13

AT46945

LINK

WITH BUSHINGS AND SEALS

1шт.

14

19H1912

CAP SCREW

3/8" X 3-1/2"

1шт.

15

T59304

BUSHING

1шт.

16

T59305

SPRING

1шт.

17

T59306

LATCH

1шт.

18

AT56931

HOOK

1шт.

19

AT46946

LINK

2шт.
