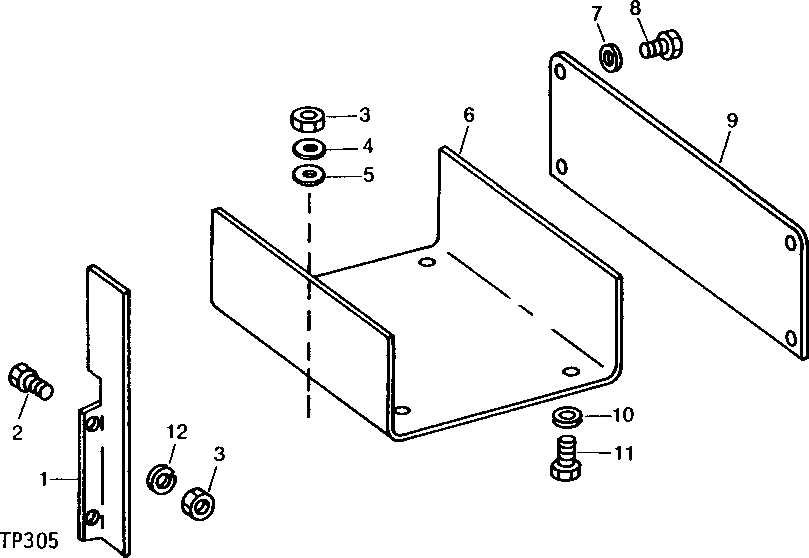

Запчасти John Deere 90 5 - ENGINE ROTARY MANIFOLD AND VALVE SPOOL SHIELDS 1913 - SHEET METAL AND STYLING 19

1

SHIELD

1шт.

2

19H2676

CAP SCREW

3/8" X 1"

2шт.

3

14H812

NUT

3/8"

4шт.

4

24H1219

WASHER

7/16" X 1" X 0.083"

2шт.

5

24H1161

WASHER

13/16" X 1-15/32" X 0.134"

2шт.

6

T52967

CHANNEL

ROTARY MANIFOLD

1шт.

7

24H1111

WASHER

17/32" X 1-1/16" X 0.090"

4шт.

8

19H1895

CAP SCREW

1/2" X 3/4"

4шт.

9

T49288

SHIELD

VALVE SPOOL

1шт.

10

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

4шт.

11

19H2898

CAP SCREW

1/2" X 1-1/4"

4шт.

12

12H293

LOCK WASHER

7/16"

8шт.
