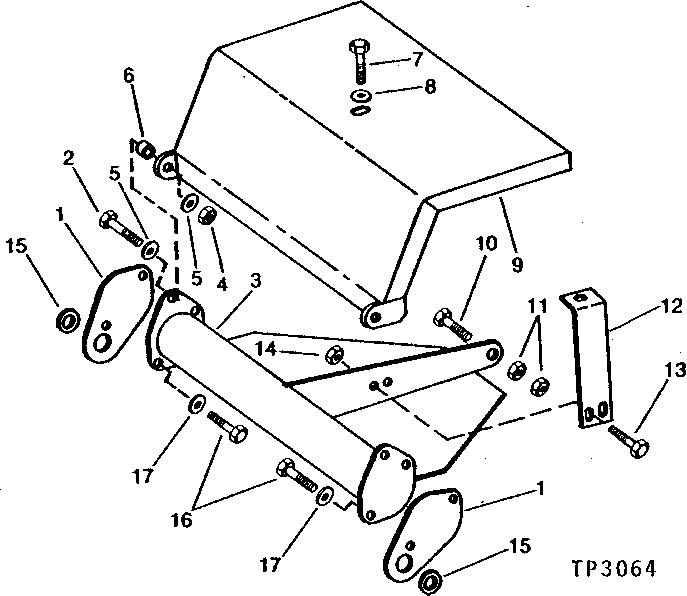

Запчасти John Deere 90 2 - UNDERCARRIAGE SHIELD 1913 - SHEET METAL AND STYLING 19

1

T52170

SUPPORT

2шт.

2

19H1439

CAP SCREW

5/8" X 3"

2шт.

3

AT46439

SHIELD

1шт.

4

U14555

LOCK NUT

(SUB FOR U44915, THIS APPLICATION)

2шт.

5

24H1139

WASHER

11/16" X 1-1/4" X 0.105"

4шт.

6

T52171

BUSHING

2шт.

7

19H3472

CAP SCREW

5/8" X 9-3/4"

1шт.

8

24H1304

WASHER

13/32" X 23/32" X 0.120"

1шт.

9

COVER

( AT46440 USE IF AVAILABLE)

1шт.

10

19H3099

CAP SCREW

1" X 3-3/4"

1шт.

11

14H806

NUT

1"

2шт.

12

T43699

ANGLE

1шт.

13

19H2993

CAP SCREW

1/2" X 1-1/2"

2шт.

14

14H1040

NUT

1/2"

2шт.

15

T46498

WASHER

BETWEEN QUILL HOUSING AND PROPEL MOTOR GUARD

ARшт.

16

T70783

SCREW

4шт.

17

24H1746

WASHER

25/32" X 1-1/8" X .120"

4шт.
