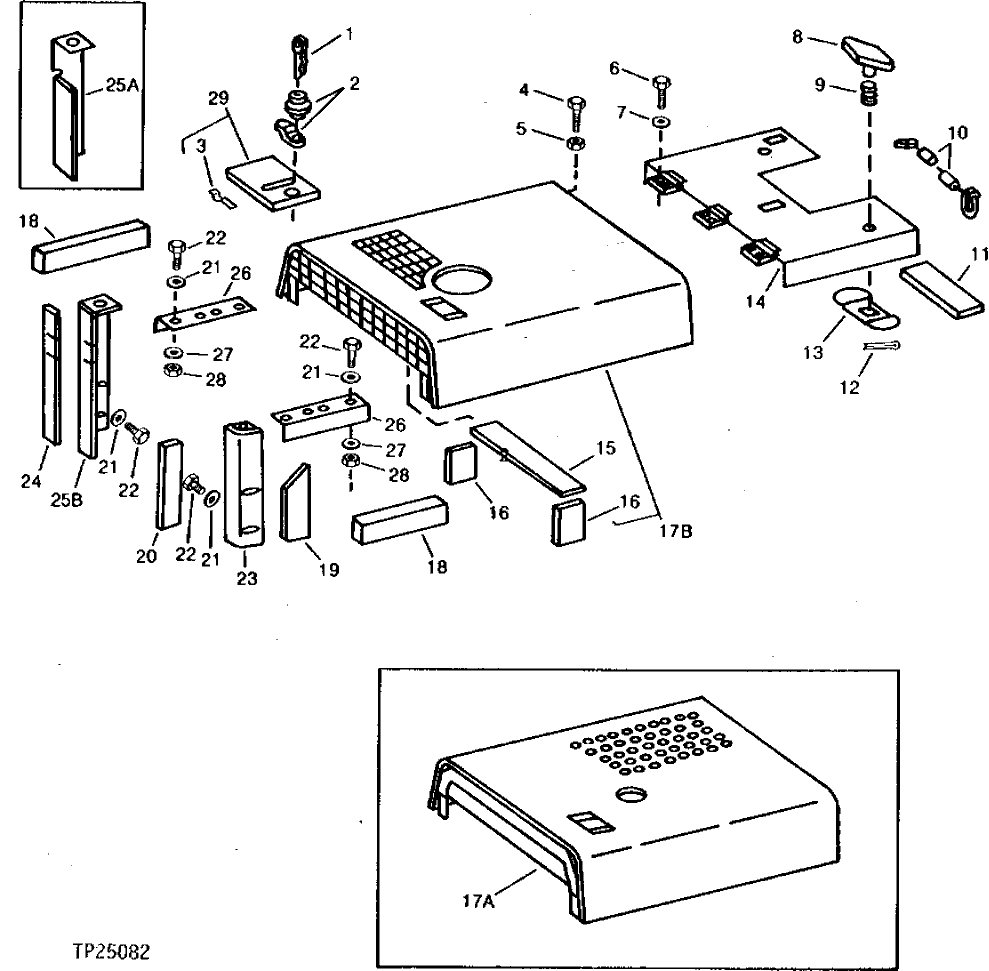

Запчасти John Deere 90 2 - HOOD AND HOOD EXTENSION 1910 - SHEET METAL AND STYLING 19

1

AT195302

KEY

(SUB FOR AR51481 AND AT145929)

1шт.

2

AT38176

LOCK

1шт.

3

T10379

CLAMP

2шт.

4

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

5

T11234

LOCK NUT

2шт.

6

19H1648

CAP SCREW

3/8" X 3/4"

6шт.

7

24H1410

WASHER

13/16" X 2-7/16" X 1/4"

6шт.

8

T31501

KNOB

2шт.

9

T14057

SPRING

2шт.

10

AT51505

QUICK LOCK PIN

1шт.

11

H21259

MAT

4шт.

12

34H266

SPRING PIN

5/32" X 1"

2шт.

13

T26762

CLAMP

2шт.

14

AT46215

EXTENSION

1шт.

15

T54340

ISOLATOR

1шт.

16

T54339

ISOLATOR

2шт.

17A

AT46230

HOOD

(SUB AT65867)

1шт.

17B

AT65867

HOOD

1шт.

18

T57574

ISOLATOR

2шт.

19

T59340

ISOLATOR

2шт.

20

T29482

ISOLATOR

1шт.

21

24H1304

WASHER

13/32" X 23/32" X 0.120"

8шт.

22

19H3239

CAP SCREW

3/8" X 1-1/4"

8шт.

23

AT65234

SUPPORT

(SUB FOR AT55477 AND AT66485)

1шт.

24

T68278

ISOLATOR

1шт.

25A

T57572

ANGLE

(SUB AT65234)

1шт.

25B

AT65234

SUPPORT

1шт.

26

T57573

ANGLE

2шт.

27

24H1622

WASHER

3/8" X 7/8" X 0.120"

4шт.

28

14H812

NUT

3/8"

4шт.

29

AT42072

COVER

RADIATOR CAP

1шт.
