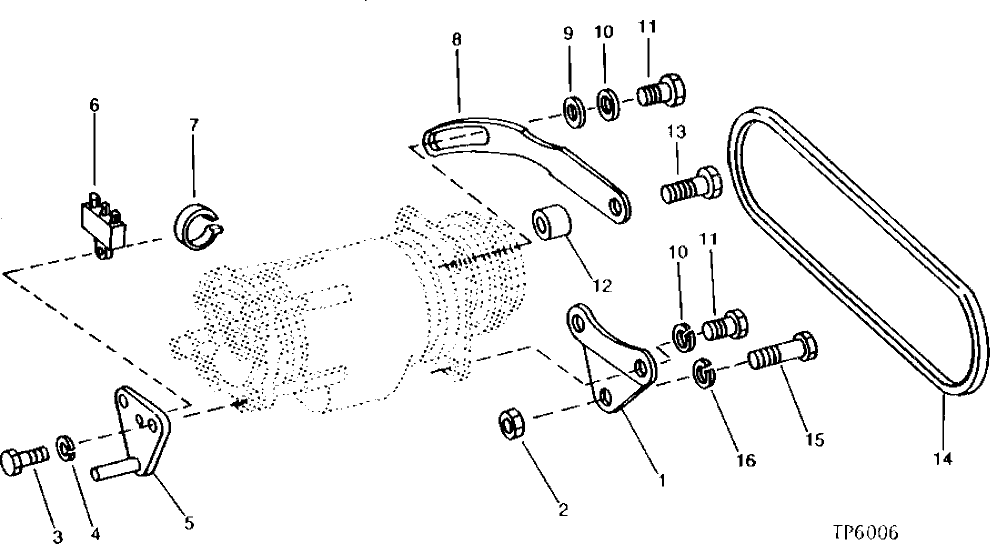

Запчасти John Deere 90 3 - COMPRESSOR MOUNTING BRACKETS 1830 - OPERATORS STATION 18

1

R45981

BRACKET

FRONT

1шт.

2

14H1040

NUT

1/2"

1шт.

3

19H2676

CAP SCREW

3/8" X 1"

2шт.

19M7167

CAP SCREW

M10 X 25

2шт.

4

12H304

LOCK WASHER

3/8"

2шт.

5

AR77342

PIN

REAR

1шт.

6

AR77344

FUSE

1шт.

7

R44302

TIE BAND

1шт.

8

R49594

STRAP

1шт.

9

24H1292

WASHER

11/32" X 3/4" X 0.120"

1шт.

24M7036

WASHER

9 X 16 X 1.600 MM, M9 X 17 X 1.6

1шт.

10

12H303

LOCK WASHER

5/16"

3шт.

11

19H2529

CAP SCREW

5/16" X 1"

3шт.

19M7881

SCREW

M8 X 20

3шт.

12

28H3381

SPACER

3/8" X 5/8"

1шт.

13

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.

14

T53320

V-BELT

(SUB FOR R49422, THIS APPLICATION)

1шт.

15

19H2735

CAP SCREW

1/2" X 2"

1шт.

16

12H301

LOCK WASHER

1/2"

1шт.
