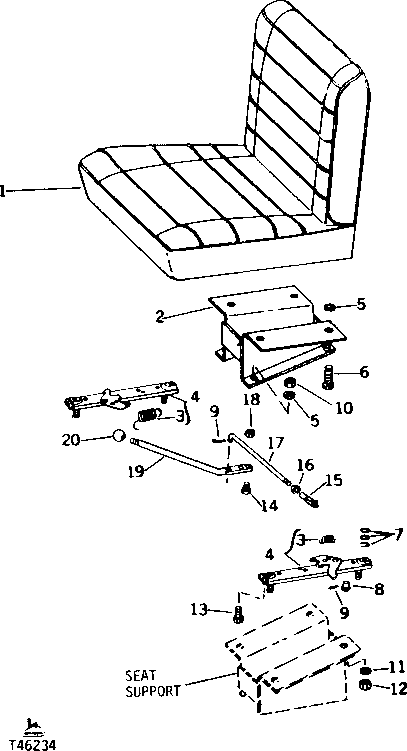

Запчасти John Deere 90 1 - SEAT AND SEAT SUPPORT 1821 - OPERATORS STATION 18

1

AT63325

SEAT

(SUB FOR AT39617, THIS APPLICATION)

1шт.

2

AT47956

SUPPORT

1шт.

3

T39497

SPRING

2шт.

4

AT37474

ADJUSTER

1шт.

5

24H1292

WASHER

11/32" X 3/4" X 0.120"

16шт.

6

19H118

CAP SCREW

5/16" X 1"

4шт.

7

24H1308

WASHER

13/32" X 1" X 0.134"

12шт.

8

L985T

PIN FASTENER

1шт.

9

11M7077

COTTER PIN

1.600 X 25 MM

2шт.

10

14H650

NUT

5/16"

4шт.

11

24H1685

WASHER

11/32" X 47/64" X 0.083"

4шт.

12

14H785

NUT

5/16"

4шт.

13

T38065

SCREW

4шт.

14

21H1128

SCREW

0.190" X 3/4"

2шт.

15

L987T

YOKE

1шт.

16

14H631

NUT

0.190"

1шт.

17

T49287

BOLT

1шт.

18

T531T

LOCK NUT

1шт.

19

T38737

LEVER

SEAT ADJUSTER

1шт.

20

M526T

KNOB

1шт.
