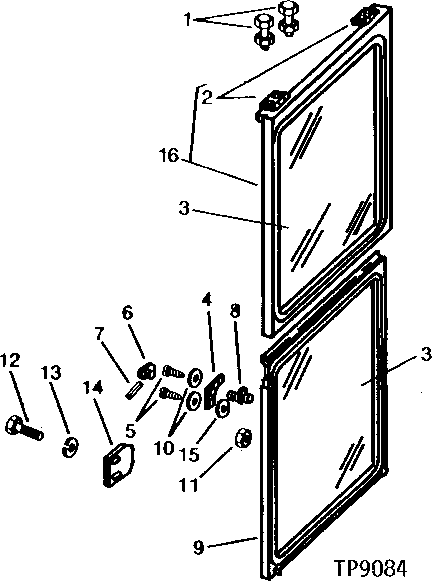

Запчасти John Deere 90 17 - CAB WINDSHIELD 1810 - OPERATORS STATION 18

1

N14822

SELF-LOCKING SCREW

(SUB FOR U43007)

4шт.

N10215

LOCK NUT

4шт.

2

U43102

HINGE

2шт.

3

U45385

WINDOWPANE

UPPER AND LOWER WINDOW

2шт.

T62372

WINDOWPANE

UPPER AND LOWER WINDOW

2шт.

MOLDING

2 718 MM (107") REQUIRED (MAKE FROM T71383) (SUB FOR U43032)

1шт.

4

U46103

PLATE

CORNER

2шт.

T62370

PLATE

CORNER

2шт.

5

SCREW

( 21H1328 NO LONGER AVAILABLE)

4шт.

03H1500

BOLT

3/8" X 1"

4шт.

6

M61002

HANDLE

1шт.

7

25H722

GROOVE PIN

1/8" X 1-1/4"

2шт.

8

AU43701

LOCK

2шт.

9

AT44268

WINDSHIELD

LOWER (WITHOUT GLASS)

1шт.

AT59709

FRAME

LOWER (WITHOUT GLASS)

1шт.

10

24H1781

WASHER

13/32" X 7/8" X 1/4"

4шт.

11

14H812

NUT

3/8"

4шт.

12

19H1948

CAP SCREW

1/4" X 3/4"

2шт.

13

24H1286

WASHER

9/32" X 1/2" X 1/16"

2шт.

14

T62374

STRIKER

1шт.

15

12H304

LOCK WASHER

3/8"

2шт.

16

AU43699

WINDSHIELD

UPPER (WITHOUT GLASS)

1шт.

AT59714

FRAME

UPPER (WITHOUT GLASS)

1шт.
