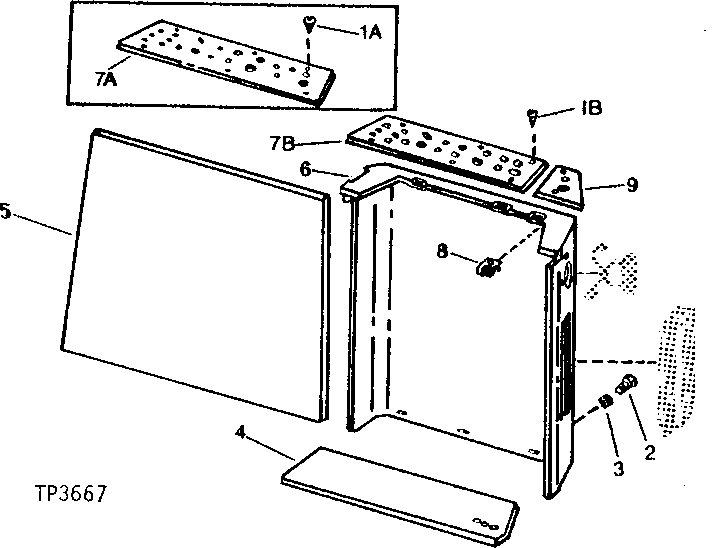

Запчасти John Deere 90 11 - INSTRUMENT PANEL 1810 - OPERATORS STATION 18

1A

R53678

SCREW

(SUB FOR T50114, THIS APPLICATION) (USE WITH T66928)

3шт.

1B

R53678

SCREW

(USE WITH T71928 AND T71929)

1шт.

2

19H1948

CAP SCREW

1/4" X 3/4"

3шт.

3

24H1305

WASHER

13/32" X 13/16" X 0.065"

3шт.

4

T58362

ISOLATOR

1шт.

5

T58360

ISOLATOR

1шт.

6

T57897

INSTRUMENT PANEL

1шт.

7

T57896

PLATE

(SUB T66928)

1шт.

7A

T66928

PANEL

1шт.

7B

T71928

PANEL

1шт.

8

R50279

NUT

(USE WITH T66928)

3шт.

R50279

NUT

(USE WITH T71928 AND T71929)

4шт.

9

T71929

PANEL

1шт.
