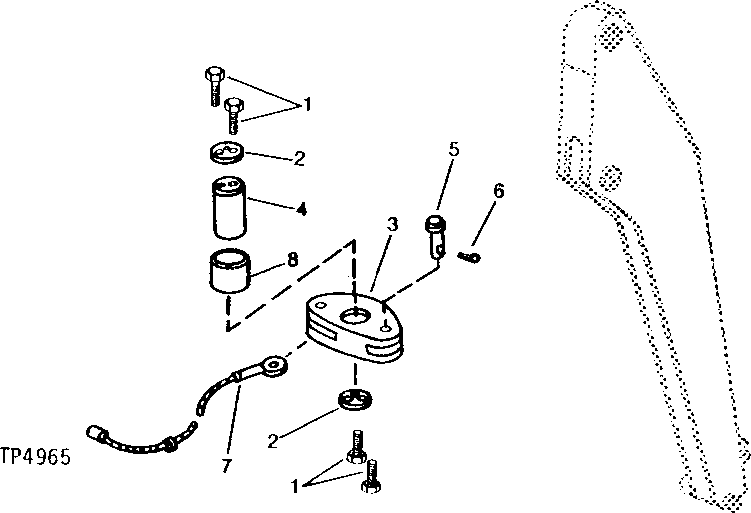

Запчасти John Deere 90 2 - COUNTERWEIGHT CABLE PIVOT 1749 - FRAME, CHASSIS, OR SUPPORTING STRUCTURE 17

1

19H2898

CAP SCREW

HS, SAE 8, 1/2" X 1-1/4"

4шт.

2

U45879

SPACER

2шт.

3

T54801

PIVOT

1шт.

4

T60810

PIN FASTENER

1шт.

5

R53296

PIN FASTENER

(SUB FOR R58268) (SUB FOR R58268, THIS APPLICATION)

2шт.

6

T22848

SPRING LOCKING PIN

2шт.

7

AT49372

CABLE

2шт.

8

T73132

SPACER

(FOR PROTECTION OF PINS AND PLATES) (NOT TO BE USED FOR REMOVAL OR INSTALLATION OF COUNTERWEIGHT)

1шт.
