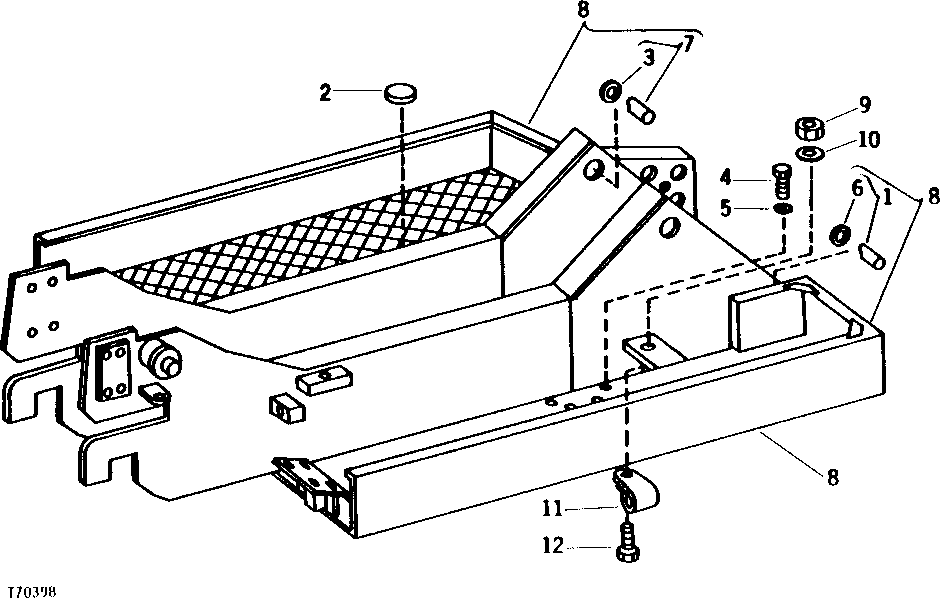

Запчасти John Deere 90 1 - MAIN FRAME 1740 - FRAME, CHASSIS, OR SUPPORTING STRUCTURE 17

1

AT47997

BUSHING

WITH SEALS BOOM TO MAIN FRAME PIVOT (BOOM CYLINDER TO MAIN FRAME)

2шт.

2

15H243

ADAPTER FITTING

2-1/2"

1шт.

3

T46613

SEAL

4шт.

4

08H4751

CAP SCREW

1" X 6-1/4"

30шт.

5

U15422

WASHER

30шт.

6

T49394

SEAL

4шт.

7

AT47492

BUSHING

WITH SEALS

2шт.

8

MAIN FRAME

WITH BUSHINGS, ( AT47988 AND AT65236 NO LONGER AVAILABLE)

1шт.

9

14H812

NUT

3/8"

1шт.

10

24H1305

WASHER

13/32" X 13/16" X 0.065"

1шт.

11

T24959

CLAMP

1шт.

12

19H3239

CAP SCREW

3/8" X 1-1/4"

1шт.
