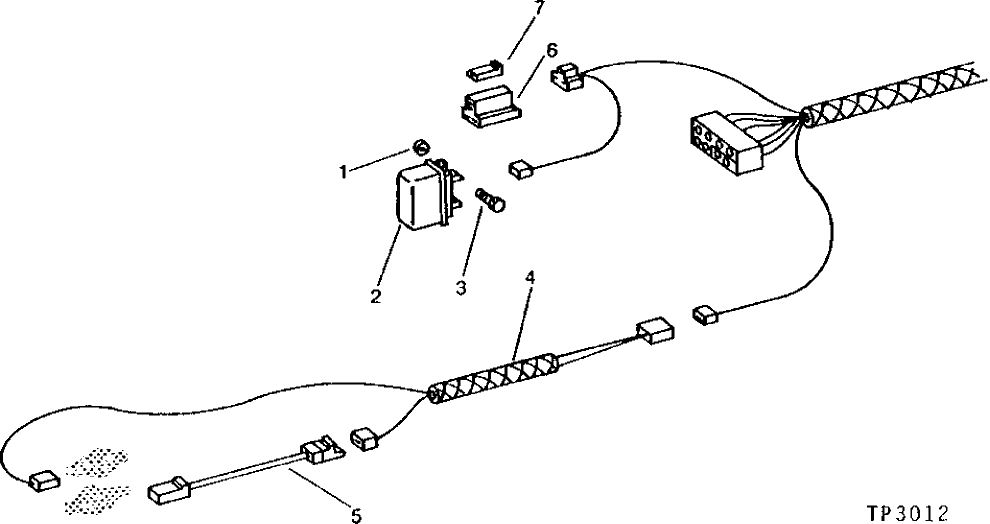

Запчасти John Deere 90 3 - ENGINE STOP WARNING RELAY AND ENGINE TEMPERATURE HARNESS 1674 - ELECTRICAL SYSTEMS 16

1

14H786

NUT

1/4", (USE WITH AU42825)

2шт.

14H786

NUT

1/4", (USE WITH AT68083 OR AT197909)

1шт.

2

AT197909

RELAY

(ALSO ORDER T71119 AND T28583) (SUB FOR AU42825 OR AT68083)

1шт.

3

19H1227

CAP SCREW

1/4" X 1/2", (USE WITH AU42825)

2шт.

19H1948

CAP SCREW

1/4" X 3/4", (USE WITH AT68083 OR AT197909)

1шт.

4

AT59236

WIRING HARNESS

1шт.

5

AT41412

WIRING LEAD

1шт.

6

CONNECTOR

(USED WHEN AT68083 OR AT197909 HAS BEEN INSTALLED) ( T71119 NO LONGER AVAILABLE)

1шт.

7

T28583

ELEC. CONNECTOR HOUSING

(USED WHEN AT68083 OR AT197909 HAS BEEN INSTALLED)

1шт.
