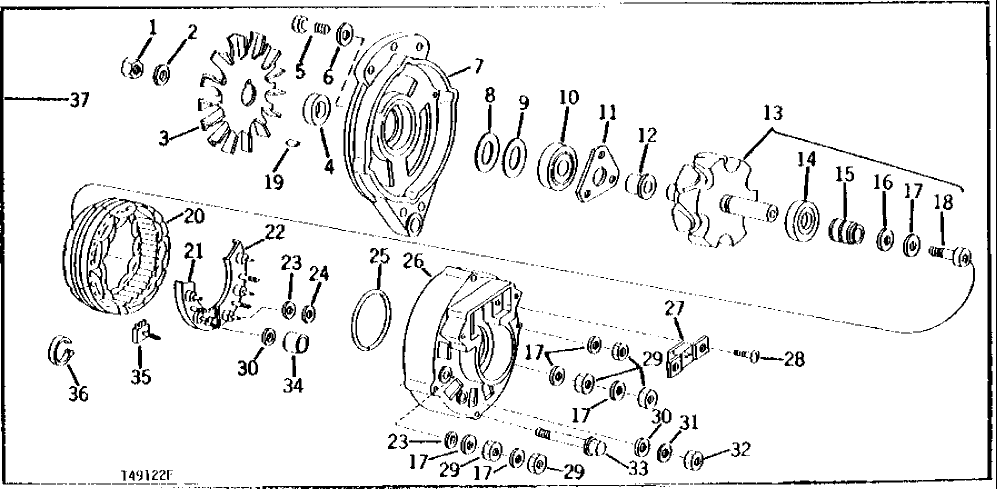

Запчасти John Deere 90 2 - ALTERNATOR 1672 - ELECTRICAL SYSTEMS 16

1

14H866

NUT

5/8"

1шт.

2

12H294

LOCK WASHER

5/8"

1шт.

3

AR50231

FAN

1шт.

4

R47463

SPACER

1шт.

5

21H1299

SCREW

0.164" X 3/8"

3шт.

6

12H315

LOCK WASHER

0.164"

3шт.

7

HOUSING

FRONT ( T37812 USE IF AVAILABLE)

1шт.

8

T46861

WASHER

1шт.

9

SHIM

51 MM (.020") ( T51143 USE IF AVAILABLE)

1шт.

10

AR50228

BALL BEARING

1шт.

11

RETAINER

( T25346 USE IF AVAILABLE)

1шт.

12

R47462

SLEEVE

1шт.

13

ROTOR

( AT49447 USE IF AVAILABLE)

1шт.

14

JD9449

BALL BEARING

REAR, (SUB FOR AT23188)

1шт.

15

RING

( AT27127 USE IF AVAILABLE)

1шт.

16

WASHER

( T51232 USE IF AVAILABLE)

1шт.

17

12H246

LOCK WASHER

0.190"

6шт.

18

T17948

SCREW

(SUB FOR T29102)

1шт.

19

26H9

SHAFT KEY

NO. 5, 1/8" X 5/8"

1шт.

20

STATOR

( AT49448 USE IF AVAILABLE)

1шт.

21

DIODE

POSITIVE ( AT49451 USE IF AVAILABLE)

1шт.

22

DIODE

NEGATIVE ( AT49450 USE IF AVAILABLE)

1шт.

23

R15036

WASHER

2шт.

24

BUSHING

( T50863 USE IF AVAILABLE)

1шт.

25

RING

( T50860 USE IF AVAILABLE)

1шт.

26

HOUSING

REAR ( T50859 USE IF AVAILABLE)

1шт.

27

AT27128

HOLDER

1шт.

28

37H120

SCREW

0.164" X 1/2"

2шт.

29

14H778

NUT

0.190"

5шт.

30

WASHER

( T50861 USE IF AVAILABLE)

2шт.

31

12H302

LOCK WASHER

1/4"

1шт.

32

14H786

NUT

1/4"

1шт.

33

R47460

BOLT

4шт.

34

BUSHING

( T50862 USE IF AVAILABLE)

1шт.

35

DIODE

( AT49449 USE IF AVAILABLE)

1шт.

36

R44302

TIE BAND

2шт.

37

TY26036

ALTERNATOR

LESS PULLEY, 42 AMPERE (MOTOROLA NO. 70D44811E01) (SUB FOR AT44644 OR TY6606)

1шт.

TY26036

ALTERNATOR

(SUB FOR TY6606) (42 AMPERE) (MOTOROLA) (REMANUFACTURED)

1шт.

SE501359

ALTERNATOR

(REMANUFACTURED FOR TY26036)

1шт.
