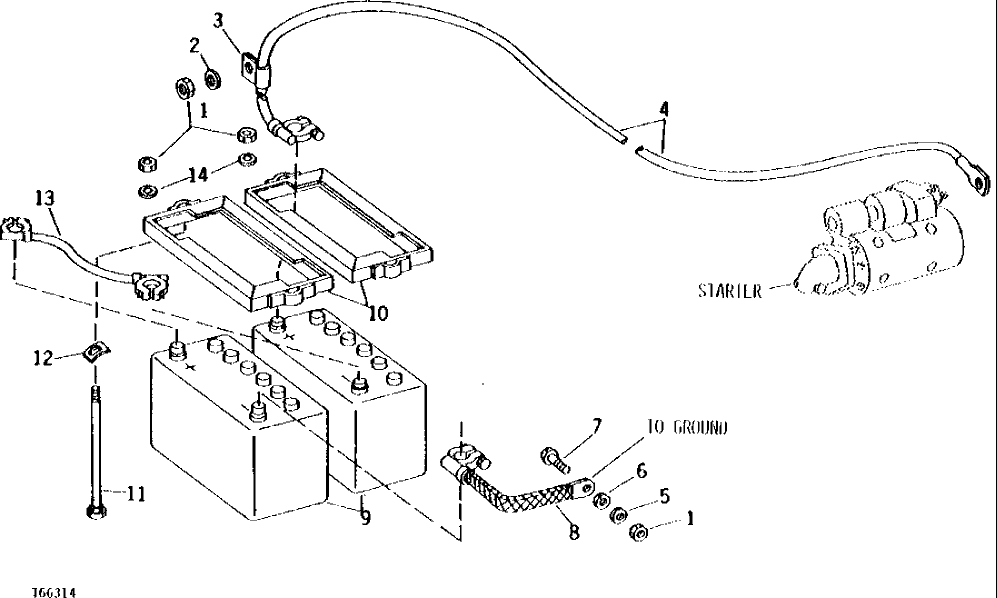

Запчасти John Deere 90 1 - 180-MINUTE RESERVE CAPACITY BATTERIES WITH CABLES AND MOUNTING 1671 - ELECTRICAL SYSTEMS 16

1

14H812

NUT

3/8"

6шт.

2

12H304

LOCK WASHER

3/8"

1шт.

3

T38377

CLAMP

(SUB FOR T24958, THIS APPLICATION) (USE WITH AR88485)

1шт.

4

AR88485

BATTERY CABLE

(SUB FOR AR53096, THIS APPLICATION) (ALSO ORDER T38377)

1шт.

5

24H1219

WASHER

7/16" X 1" X 0.083"

1шт.

6

12H331

LOCK WASHER

3/8"

1шт.

7

03H1765

BOLT

3/8" X 3/4"

1шт.

8

AT132773

GROUND CABLE

(SUB FOR AT25418)

1шт.

9

AT29160

DRY CHARGED BATTERY

DRY AND CHARGED, 12 VOLT, 570 COLD CRANKING AMPS AT -18°C (0°F) 180-MINUTE RESERVE CAPACITY AT 25 AMPERES

2шт.

10

AT11880

FRAME

2шт.

11

BOLT

( 03H2221 NO LONGER AVAILABLE)

4шт.

12

U44618

PUSH NUT

4шт.

13

AT53497

CABLE

1шт.

14

24M7101

WASHER

11 X 34 X 3 MM

4шт.
