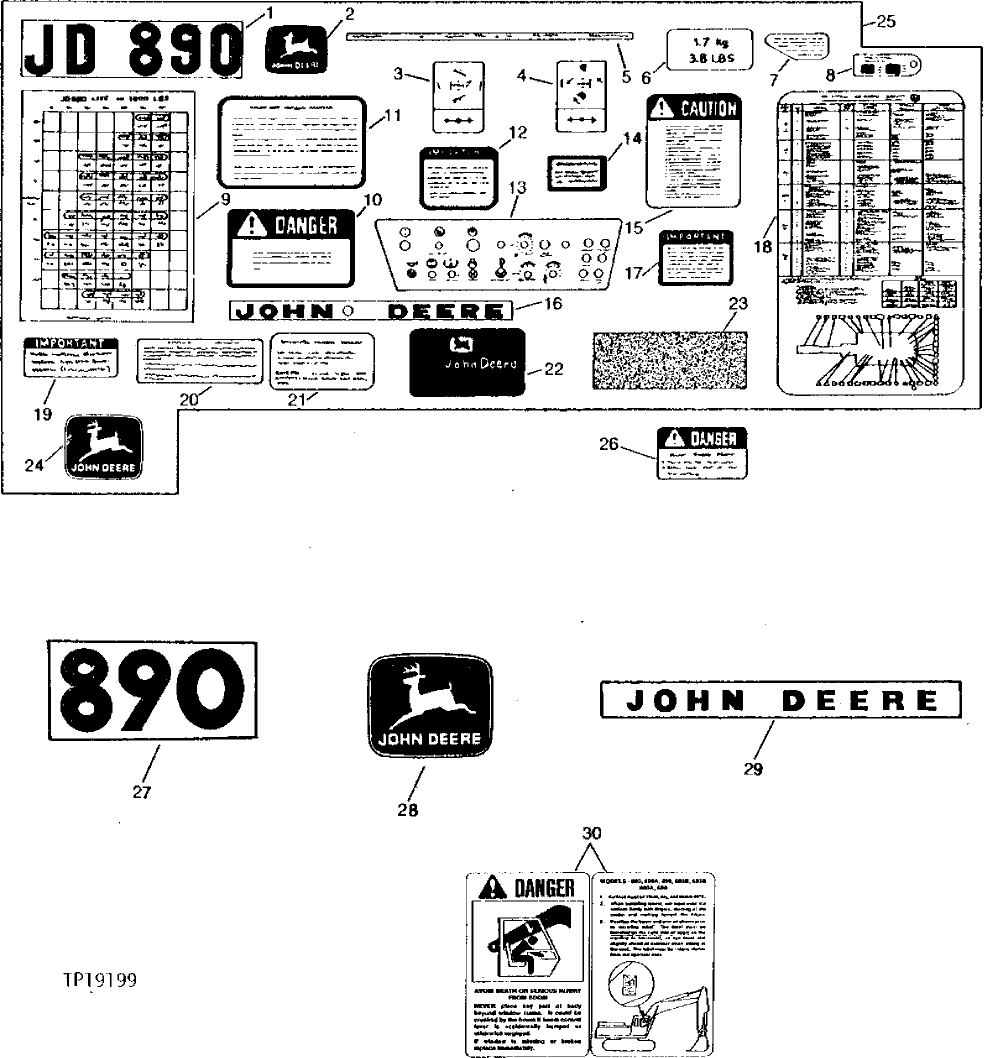

Запчасти John Deere 90 2 - DECALS AND LABELS 1320 - MISCELLANEOUS VEHICLE 13

1

T52196

LABEL

SERIES DESIGNATION

2шт.

2

JD5624

LABEL

"LEAPING DEER" (ON REAR) (SUB FOR JD5608)

2шт.

3

T81042

LABEL

CONTROL, LEFT, (SUB FOR T60688) (WHITE BACKGROUND)

1шт.

T81044

LABEL

CONTROL, LEFT (YELLOW BACKGROUND)

1шт.

4

T81041

LABEL

CONTROL, RIGHT, (SUB FOR T60687) (WHITE BACKGROUND)

1шт.

T81043

LABEL

CONTROL, LEFT (YELLOW BACKGROUND)

1шт.

5

T61801

LABEL

INSTRUMENT, (SUB FOR T49292)

1шт.

6

T62144

LABEL

COMPRESSOR CHARGE

1шт.

7

T44578

LABEL

HOUSE LOCK

1шт.

8

T63862

INSTRUCTION PLATE

ALTITUDE LIMIT

1шт.

9

T53787

LABEL

LIFT, 900 MM (36") TRACK

1шт.

T64321

LABEL

LIFT, 750 MM (30") TRACK

1шт.

10

T146667

SAFETY SIGN

(DANGER - ELECTROCUTION)

1шт.

11

T43722

LABEL

(SUB FOR T52198) HYDRAULIC RESERVOIR

1шт.

12

T52200

LABEL

RESERVOIR SHUT-OFF

1шт.

13

T57898

DECALS

CONTROL PANEL, (SUB T71927)

1шт.

T71927

LABEL

CONTROL PANEL, (SUB FOR T66927, THIS APPLICATION)

1шт.

14

T42170

LABEL

INSTRUCTIONAL

NAшт.

15

T38438

SAFETY SIGN

SAFETY

1шт.

16

T52193

LABEL

NAME "JOHN DEERE"

2шт.

17

T63863

LABEL

ALTITUDE LIMIT

1шт.

18

T62145

LABEL

PERIODIC SERVICE CHART (SUB FOR T52197) (WITH ENGINE USING SINGLE OIL FILTER)

1шт.

T72166

LABEL

PERIODIC SERVICE CHART (WITH ENGINE USING DUAL OIL FILTERS)

1шт.

19

T52199

LABEL

IMPORTANT

2шт.

20

T35672

LABEL

START AND STOP PROCEDURES

1шт.

21

T65204

LABEL

HYDRAULIC FILTERS

1шт.

22

LABEL

COOLANT CONDITIONER (SUB FOR AT67022)

1шт.

23

H21259

MAT

OPERATOR'S DECK

4шт.

24

T67606

LABEL

"LEAPING DEER", (SUB FOR T52192)

2шт.

T67606

LABEL

2шт.

25

AT67022

KIT

DECAL REFINISHING

1шт.

26

T64425

SAFETY SIGN

DANGER (SUB FOR T64303)

1шт.

27

T72463

LABEL

SERIES DESIGNATION

1шт.

28

JD5624

LABEL

"LEAPING DEER" (ON REAR) (USE WITH T72463)

2шт.

JD5628

LABEL

"LEAPING DEER" (ON BOOM) (USE WITH T72463)

2шт.

29

JD5619

LABEL

JOHN DEERE (USE WITH T72463)

2шт.

30

T107652

SAFETY SIGN

(DANGER)(ON BOOM-TO BE VISIBLE FROM OPERATOR STATION)

1шт.

AT61207

DECAL KIT

DECAL COMPLETE (FRENCH)

1шт.

AT61209

DECAL KIT

DECAL COMPLETE (SPANISH)

1шт.

AT61208

DECAL KIT

DECAL COMPLETE (GERMAN)

1шт.
