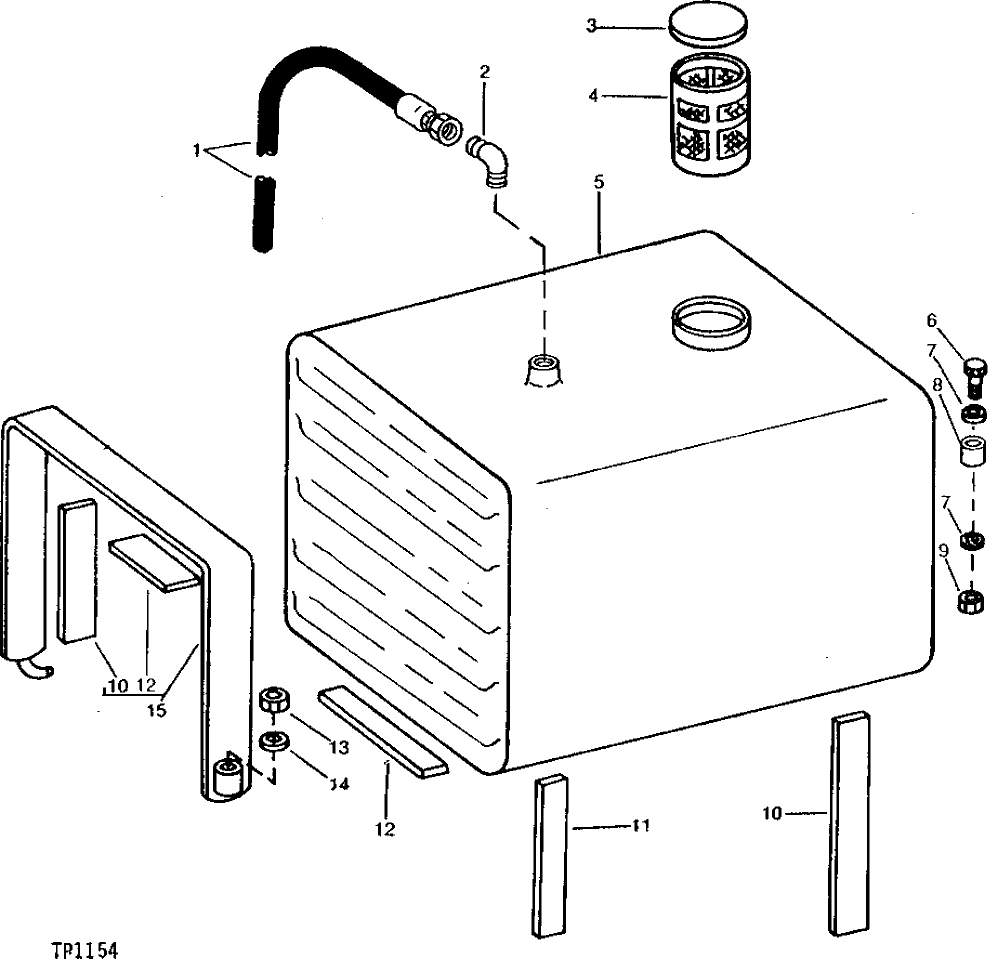

Запчасти John Deere 90 2 - FUEL TANK 560 - ENGINE AUXILIARY SYSTEMS 5

1

AT54481

HYDRAULIC HOSE - FABRICATE

(USE WITH AT67329)

1шт.

2

U45538

ELBOW FITTING

(USE WITH AT67329)

1шт.

3

AR36752

CAP

(NO LONGER AVAILABLE)

1шт.

4

AT27449

FILTER

1шт.

5

AT67329

FUEL TANK

(SUB FOR AT48729) (ALSO ORDER AT54481 AND U45538)

1шт.

6

19H3239

CAP SCREW

3/8" X 1-1/4", (USE WITH T57216)

4шт.

19H3217

CAP SCREW

3/8" X 1-3/4", (USE WITH H80271)

4шт.

7

24M7096

WASHER

0.413" X 0.709" X 0.063"

8шт.

8

BUSHING

(SUB FOR T57216) ( H80271 NO LONGER AVAILABLE)

4шт.

9

14H812

NUT

3/8"

4шт.

10

T46077

ISOLATOR

4шт.

11

MOLDING

244 MM LONG (.8 LIN. FT.) (MAKE FROM T58056, 15 M (50 FT.) BULK)

1шт.

12

T41919

ISOLATOR

6шт.

13

H32811

LOCK NUT

(SUB FOR U14502)

2шт.

14

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

2шт.

15

AT55144

BAND

2шт.
